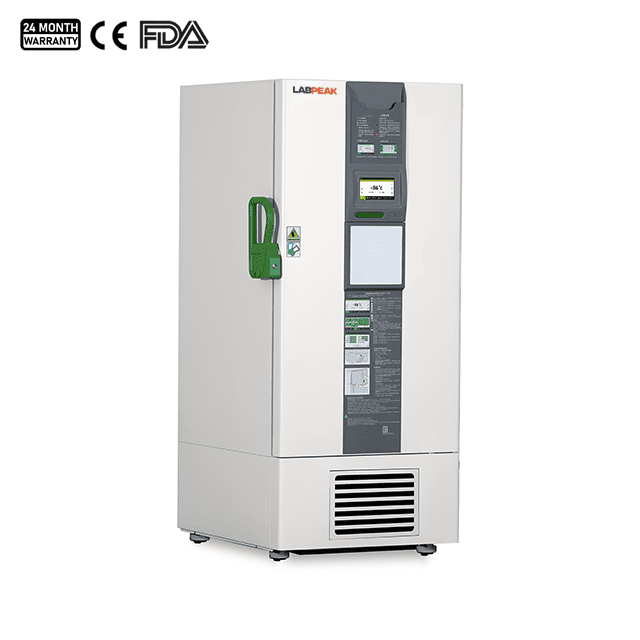

-86℃ Ultra Low Temperature Freezer, Dual System

This ultra low temperature freezer offers a larger set point range, tighter control and faster recovery time, making it the first choice for precision experiments.

  • Model : LUFZ-P86V410P; LUFZ-P86V590P; LUFZ-P86V730P; LUFZ-P86V840P;
  • Effective Volume (L) : 408; 588; 728; 838
  • Internal Temperature (℃) : -40~-86
  • External Sizes (mm) : 891x992x1945; 891x1155x1994; 1248x975x1994; 1179x1135x1994

Description

This -86°C ultra low temperature freezer is a high-performance freezer designed for long-term storage of biological samples, pharmaceuticals and other temperature-sensitive materials. The freezer has a double-door design, and the inner and outer doors are made of sturdy metal. Its appearance is beautiful and generous, and its internal structure is reasonably designed. The -86°C UlT freezer offers multiple levels of storage space to meet the diverse needs of laboratories, medical institutions and scientific research units.

-86℃ Ultra Low Temperature Freezer Feature:

  1. This ultra low temperature freezer provides a stable ultra-low temperature environment to ensure sample integrity and safety.
  2. Advanced refrigeration technology enables rapid cooling with low energy consumption.
  3. Ultra cold freezer is equipped with multiple safety protection systems, including a temperature alarm system, a power failure alarm function, and a door lock design to ensure that samples are protected from unforeseen circumstances.
  4. The intelligent control panel allows users to conveniently set and monitor the temperature with easy operation.
  5. CE and FDA certified to ensure product quality and safety.

-86℃ Ultra Low Temperature Freezer Specifications:

Model LUFZ-P86V410P LUFZ-P86V590P LUFZ-P86V730P LUFZ-P86V840P
Capacity (L) 408 588 728 838
Size(WxDxH)(mm) Internal 606x575x1180 606x738x1310 963x571x1350 894x718x1310
External 891x992x1945 891x1155x1994 1248x975x1994 1179x1135x1994
Temperature Range (℃) at Room Temperature 10~32℃ -40~-86 -40~-86 -40~-86 -40~-86
Sensor PTC PTC PTC PTC
Controller Microprocessor Microprocessor Microprocessor Microprocessor
Cooling System Refrigerant R4001 (CFC Free) R4001 (CFC Free) R4001 (CFC Free) R4001 (CFC Free)
Defrost Manual Manual Manual Manual
Compressor (Qty) SECOP/2 SECOP/2 SECOP/2 SECOP/2
Display LCD display LCD display LCD display LCD display
Audible & Visible Alarm High/Low temperature, high ambient temperature, sensor error, abnormal voltage, low battery, door ajar, 72h power failure backup system (alarm)
Material Internal Stainless steel, grade 304
External Electro-galvanized steel with antimicrobial powder coating
Inner Door Stainless steel, grade 304
Accessories Standard USB port, casters, remote alarm port, 25mm test hole
Optional Data logger, back up system (CO₂/LN₂)
Shelves / Drawers (Qty) Shelves/3 Shelves/3 Shelves/3 Shelves/3
Optional Frozen Racks (Qty) Racks 8(5×4)+8(4×4) 16(5×5) 18(5×4)+6(6×4) 18(5×4)+6(6×4)
Boxes (2 Inches) 288 400 504 600
Samples (2ml) 28800 40000 50400 60000
Sound Emission (dB) 53 53 55 55
Electricity Voltage/

Frequency

AC110/220V±10%, 50/60Hz
Consumption (W) 1350 1500 1400 1700
N.W./G.W. (kg) 285/310 303/332 380/400 391/424
Shipping Size (WxDxH)(mm) 954x955x2094 970x1138x2185 1320x970x2185 1262x1098x2185

Advantages of -86℃ Ultra Low Temperature Freezer:

  1. The installation of two distinct cooling systems adds an extra degree of security. When one system malfunctions, the other may maintain an internal temperature of -70°C.
  2. A precise system with microprocessor control guarantees a temperature range of -86°C to -40°C for the chamber area, with increments of 1°C.
  3. A strong cooling system with a distinctive design enables a quick drop in temperature.
  4. A tighter freezer seal is provided by the safety inner door design. Provide users with adjustable shelves so they can meet their demands.
  5. 304 stainless steel is used as the chamber’s material for easy cleaning.
  6. When the door opens, a limit door hinge on an upright door keeps people from colliding.

-86℃ Ultra Cold Freezer Packing:

To prevent product damage, use shockproof foam padding and high-strength corrugated cardboard. The package is easy to handle and install, with clear operating instructions and caution indications printed on it. In order to lessen environmental damage, all packaging materials are recyclable and ecologically friendly, adhering to international environmental regulations.
