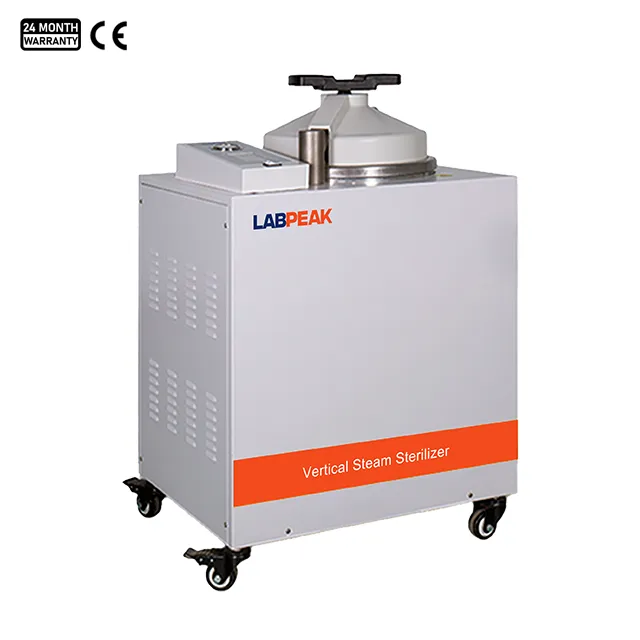

Automatic Vertical Autoclave Feature:

Overheat protection: Automatically stops heating with audible and visual alerts when overheated.
Anti-burning protection: Stops heating with alerts when water is insufficient.
Interlock safety: Prevents cycle start if door isn’t closed or chamber is pressurized.
Steam pressure valve: Activates if pressure exceeds the limit.
Automatic sterilization control with PID microprocessor and LCD display.
Positive pulsing for efficient air removal.
Liquid program prevents boil-over and explosions.
Power-off memory function.
Internal steam-water circulation system.
Optional printer for real-time records and alarms.

Automatic Vertical Autoclave Specifications:

Model	LST-PV50A	LST-PV80A	LST-PV100A	LST-PV120A	LST-PV150A
Capacity	50L	80L	100L	120L	150L
External Size (WxDxH)(mm)	476x616x990	546x688x1030	566x708x1295	620x760x1190	680x820x1180
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø400×800	Ø450×760	Ø500×780
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp.Accuracy	0.1℃
Designed Pressure	0.3Mpa
Max.Sterilization Pressure	0.23Mpa
Sterilization Time Range	0~99min
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Dressings/Fabric program
	●Tools program
	●Rubber program
	●Culture medium sterilization warming program
	●Culture medium dissolution warming program
	●Liquids in closed containers (glass bottle, plastic bottle and bag) program
	●Waste program
Water Injection Method	Built-in water tank
Power Consumption	3KW	4.5KW	5.4KW	5.4KW	9.3KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz	380V 50Hz	380V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs	2pcs	2pcs
Optional Accessories	Printer, USB port
Net Weight	68kg	92kg	100kg	175kg	195kg
Gross Weight	103kg	127kg	140kg	215kg	235kg
Shipping Size (WxDxH)(mm)	730x820x1250	800x880x1300	800x880x1480	950x1050x1280	950x1050x1440
