The benchtop freeze dryer offers three-level account privilege management for secure, decentralized operation.
The benchtop freeze dryer features the exclusive JD lyophilization operating system, offering a user-friendly interface with language options in both Chinese and English. It allows for the creation and storage of over 1000 process formulas, each with 50 temperature control segments, ensuring maximum flexibility and precision. Mid-experiment, users can pause and adjust parameters for optimal results.

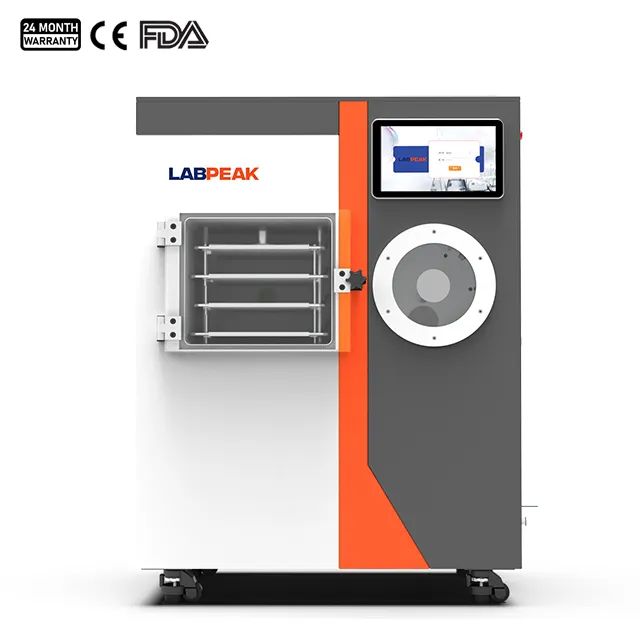

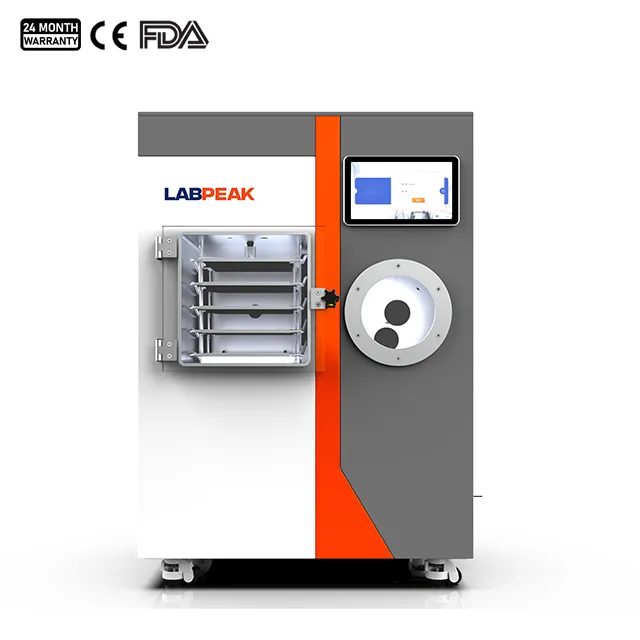

| Model | LFD-PB4I | LFD-PB5 |
| Maximum Freeze-drying Area(m2) | 0.36 | 0.48 |
| Cold Trap Water Capture Capacity(kg) | 12kg | |
| Tray Size(mm) | 300X400 | |
| Tray Quantity | 3 | 4 |
| Tray Spacing | 95mm | 70mm |
| Tray Temperature Range | -50~60℃ | |
| Vacuum Pump | Standard | |
| Vacuum Pump Pumping Speed | 4L/s | |
| Capping Function | Standard | |
| Vacuum Degree(Pa) | ≤5Pa (No load) | |
| Ultimate Vacuum Degree(Pa) | 1Pa | |
| Inert Gas Backfill | 0.2µm | |
| Power Supply | AC220V, 50/60Hz | |
| Consumption(W) | 5000W | |
| Freeze Drying Chamber (W×D×H)(mm) | 496x434x441 | |
| Shipping Size(W×D×H)(mm) | Main machine: 1480x1130x2030 | |
| Vacuum pump: 530x250x350 | ||
| Main Machine/Vacuum Pump: G.W. (kg) | 640/17 | |
