Biological Safety Cabinet Class I

Biological Safety Cabinet Class I, BSC I Series

The biosafety cabinet class I with advanced ergonomic design excel in user comfort and functionality. Now the affordable biosafety cabinet class I for sale at cost price.

  • Model : BSC-I-LP1100; BSC-I-LP1300; BSC-I-LP1600; BSC-I-LP1900
  • Work Surface Height : 750mm
  • Airflow Velocity : 0.2~0.5 m/s, Speed adjustable
  • Main body : Electro-Galvanized steel with antimicrobial powder coating
Category:

Description

This biological safety cabinet class I features advanced design and technology to perform everyday applications safely and efficiently. The proprietary airflow design provides superior protection, superior ergonomics for a safe and comfortable environment, and superior energy efficiency for operational cost savings.

Biological Safety Cabinet Class I Features:

  1. Perforations on the back wall of the work zone are strategically placed to minimize air turbulence and prevent stagnant air pockets.

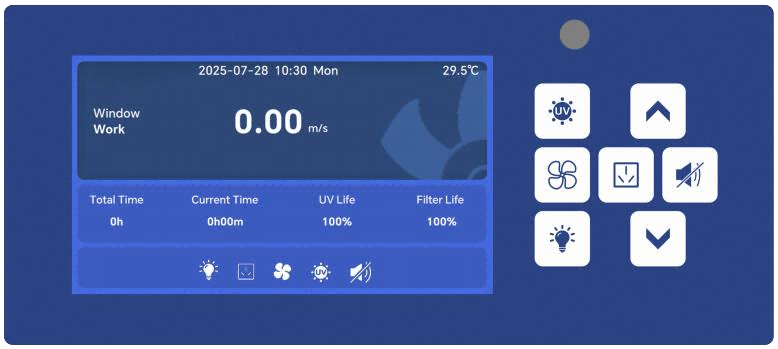

  2. The microprocessor controller features an intuitive interface with an LCD display, providing graphical and digital feedback on the status of each function, including filter and UV lamp life.
  3. The control panel is ergonomically positioned at the center and angled downward for easy access and viewing.
  4. Utilizing a non-direct light source design, the unit effectively reduces operator visual fatigue while maintaining adequate illumination.
  5. The work surface is crafted from brushed stainless steel, facilitating easy cleaning and maintenance.

Biological Safety Cabinet Class I Specifications:

Model BSC-I-LP1100 BSC-I-LP1300 BSC-I-LP1600 BSC-I-LP1900
External Size (WxDxH) (mm) 1050x710x1850 1320x710x1850 1625x710x1850 1930x710x1850
Internal Size (WxDxH)(mm) 950x615x625 1220x615x625 1525x615x625 1830x615x625
Work Surface Height 750mm
Control System Display Microprocessor controller with LCD display, display the operating status of each function
Alarm Audio and Visual alarm on filter and UV changing
Interlock Front sliding sash interlock with fan and UV lamp
Life Indicator HEPA filter and UV life indicators facilitate a timely replacement plan
Airflow System Airflow Velocity 0.2~0.5 m/s, Speed adjustable
Air filtration System HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)

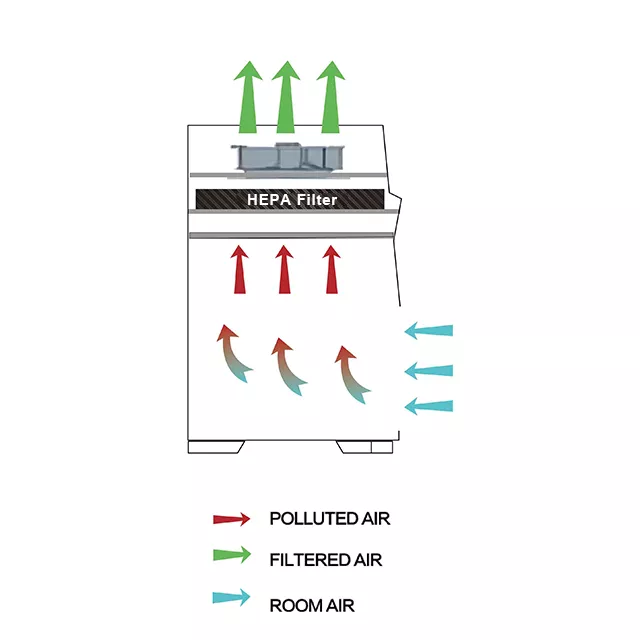

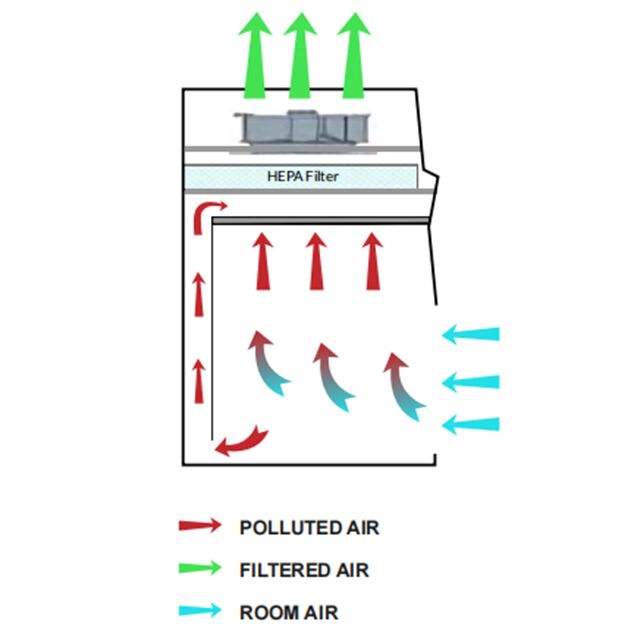

Partial air circulation Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction Main Body Electro-Galvanized steel with antimicrobial powder coating
Work Surface 304 Stainless steel, an angled front, rounded work surface front edge
Front Window Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
Side window 5 mm UV resistant tempered glass
Electrical System UV Lamp  20W×1 30W×1 30W×1 20W×2
With timing function from 0 to 999 minutes, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
Consumption 155W 285W 285W 300W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤62dB(A)
Standard Accessory 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2
Optional Accessory 1. Water Tap; 2. Gas Tap
Gross Weight (kg) 225 255 285 330
Shipping Size (W×D×H)(mm) 1190x990x1325 1460x990x1325 1765x990x1325 2070x990x1325
Shipping Volume (m3) 1.56 1.92 2.3 2.7
Shipping Volume (m3) 1.56 1.92 2.3 2.7

Advantages of Biological Safety Cabinet Class I:

  1. The front sliding sash features an interlock mechanism with the fan and UV lamp.
  2. UV sterilization includes a timing function for the UV lamp.
  3. Both the front sash and side windows are constructed from UV-resistant tempered glass.
  4. Independent capacitors are installed for the host and sockets to prevent current overload.
  5. Audio and visual alarms are integrated to alert on filter life, UV lamp life, and other relevant indicators.
  6. In the event of power failure, the memory function ensures data retention.
  7. HEPA filter and UV life indicators assist in planning timely replacements.
  8. Two side glass windows enable easy observation of experiments.
  9. Includes a temperature sensor for accurate real-time temperature display during operation.

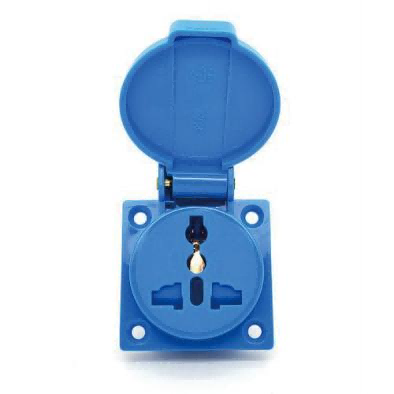

  10. Waterproof sockets offer convenience for using small instruments in the operating area.

What are the uses of biosafety cabinet class I?

A biological safety cabinet (BSC) serves as a primary engineering safeguard, shielding personnel from biohazardous or infectious agents while also ensuring quality control of the material being handled by filtering both incoming and outgoing air.

WHY Labpeak

  1. 18 Months Limited Warranty
  2. Help meet ISO, FDA, CE quality assurance guidelines
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

What is a class I biosafety cabinet?

A Class I biosafety cabinet is a ventilated enclosure ensuring both personnel and environmental safety. It features an open front with inward airflow for personnel protection and HEPA-filtered exhaust air for environmental protection.

Difference between Class I and Class II safety cabinets?

Biosafety cabinets fall into three classes: I, II, and III. Class I offers protection for the user and surrounding environment, but not for the sample being handled. Class II provides protection for the user, environment, and sample, and is further categorized into four types: A1, A2, B1, and B2.
