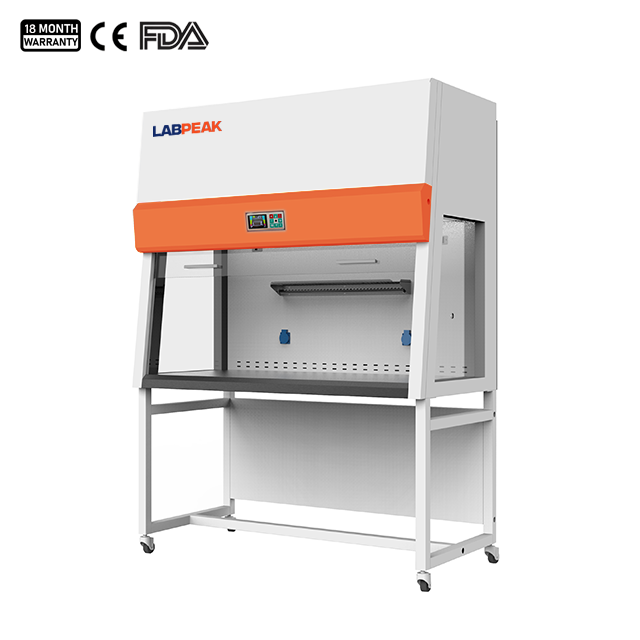

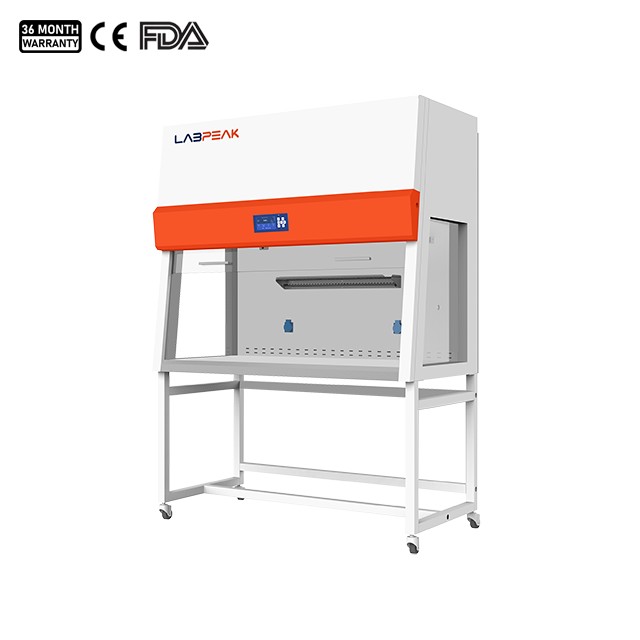

PCR Cabinet

Our state-of-the-art PCR cabinet is designed to revolutionise your Polymerase Chain Reaction (PCR) workflow, providing a sterile and controlled environment for your critical experiments.

  • Model : PCR-LP1100; PCR-LP1300; PCR-LP1600; PCR-LP1900
  • Work Surface Height : 750mm
  • Illuminating : ≥900Lx
  • Airflow Velocity : 0.2~0.5 m/s, speed adjustable
Category: Tag:

Description

PCR cabinet is safety devices that protect laboratory staff from possible contamination and cross-contamination during PCR experiments. Our PCR cabinets are manufactured to the highest industry standards to ensure a safe and reliable laboratory environment. Each component undergoes stringent quality control checks to ensure consistent and reliable performance.
It is ergonomically designed for easy operation and provides a comfortable working environment. A precise temperature control system and an efficient filtration system ensure accurate and reproducible PCR reactions.

Advantages of PCR Cabinet:

Safety Features:

  1. Audible and visual alarms for filter and UV lamp life status.
  2. Front sliding sash interlock system linked with fan and UV lamp operation.
  3. UV-resistant tempered glass used for front sash and side windows.
  4. Independent capacitors for host and sockets to prevent current overload.

User-friendly Design:

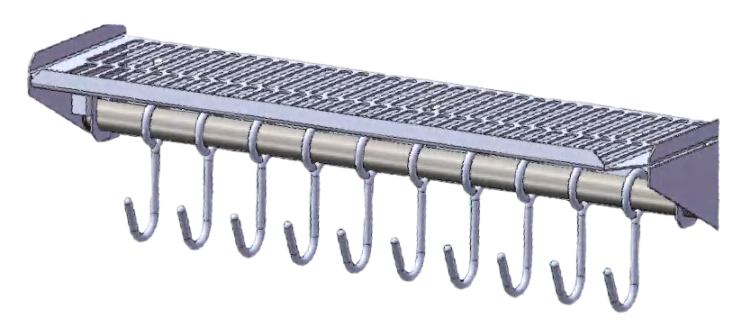

  1. Standard shelves with IV bar included.
  2. Memory function to retain settings in case of power failure.
  3. HEPA filter and UV life indicators for easy replacement scheduling.
  4. Dual-sided glass windows for convenient experiment observation.
  5. Easy-to-replace pre-filter extends HEPA filter lifespan.
  6. Temperature sensor displays real-time operating temperature.
  7. Waterproof sockets for small instrument use in the operating area.

PCR Cabinet Specifications:

Model PCR-LP1100 PCR-LP1300 PCR-LP1600 PCR-LP1900
External Size (WxDxH) (mm) 1050x710x1850 1320x710x1850 1625x710x1850 1930x710x1850
Internal Size (WxDxH)(mm) 950x615x625 1220x615x625 1525x615x625 1830x615x625
Work Surface Height 750mm
Control System Display Microprocessor controller with LCD display, display the operating status of each function
Alarm Audio and visual alarm on filter and UV changing
Interlock Front sliding sash interlock with fan and UV lamp
Life Indicator HEPA filter and UV life indicators facilitate a timely replacement plan
Airflow System Airflow Velocity 0.2~0.5 m/s, speed adjustable
Air filtration System Pre-Filter 1pcs, Polyester fiber, washable
HEPA Filter 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
Cleanliness Grade ISO Class 5 (formerly Class 100)
Partial air circulation Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Cabinet Construction Main Body Electro-Galvanized steel with antimicrobial powder coating
Work Surface 304 Stainless steel
Front Window Manual sliding sash: 5 mm UV resistant tempered glass
Side window 5 mm UV resistant tempered glass
Electrical System UV Lamp 20W×1 30W×1 30W×1 20W×2
With timing function from 0 to 999 minutes, Interlock with front sliding sash.
Emission of 253.7 nanometers for best sterilization effect.
LED Lamp 8W×2 12W×2 12W×2 12W×2
Consumption 155W 285W 285W 300W
Not include socket loading power consumption
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination ≥900Lux
Sound Emission ≤62dB(A)

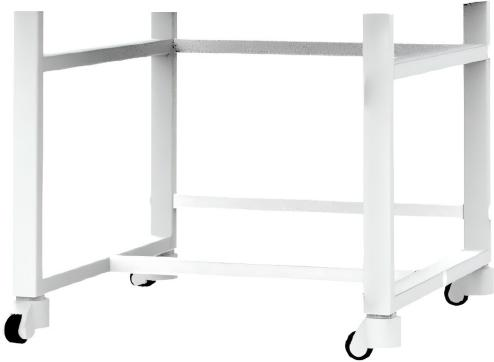

Standard Accessory 1.Base Stand; 2.LED Lamp; 3.UV Lamp; 4.Waterproof Socket×2
Optional Accessory Gas Tap
Gross Weight (kg) 225 255 285 330
Shipping Size (W×D×H) (mm) 1190x990x1325 1460x990x1325 1765x990x1325 2070x990x1325
Shipping Volume (m3) 1.56 1.92 2.3 2.7

PCR Cabinet Feature:

  1. Our PCR cabinet is equipped with specially designed perforations on the back wall of the work zone to effectively eliminate air turbulence and prevent the formation of dead air corners.
  2. Featuring a versatile digital timer, our PCR cabinet allows for UV light exposure in continuous mode or in user-selected increments ranging from 15 to 999 minutes, ensuring thorough deactivation of DNA and RNA contaminants.

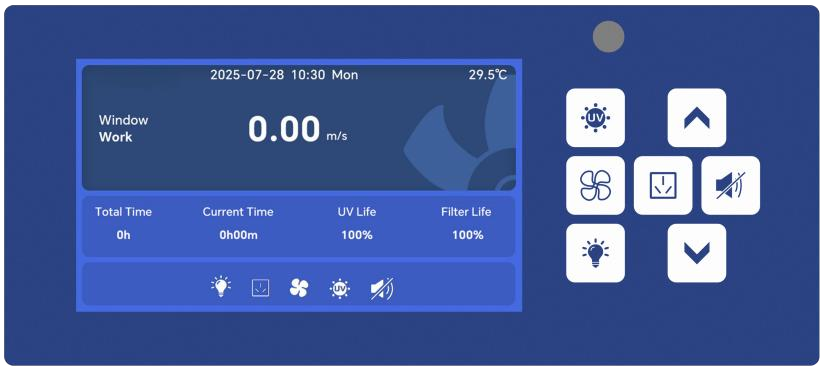

  3. With an intuitive microprocessor controller featuring an LCD display, our PCR cabinet offers easy operation and provides clear graphical and digital status updates for each function, including filter and UV lamp life.
  4. Designed with user comfort in mind, the control panel is centrally located and angled downwards for convenient access and optimal viewing.
  5. Utilizing a non-direct light source design, our PCR cabinet effectively reduces operator visual fatigue while maintaining adequate illumination.
  6. Available in various sizes from 2 feet to 6 feet, our PCR cabinet can be used on a benchtop or mounted on a mobile base, offering flexibility to suit different laboratory setups.
  7. Featuring a brushed stainless steel work surface, our PCR cabinet ensures easy cleaning and maintenance, contributing to a hygienic laboratory environment.

PCR Cabinet Package:

Each PCR cabinet undergoes meticulous assembly steps without any delays:

  1. Complete wrapping with protective film.
  2. Reinforced edges to prevent collisions during transport.
  3. Securely housed in fumigation-free plywood crates and pallets, securely bound with iron straps.

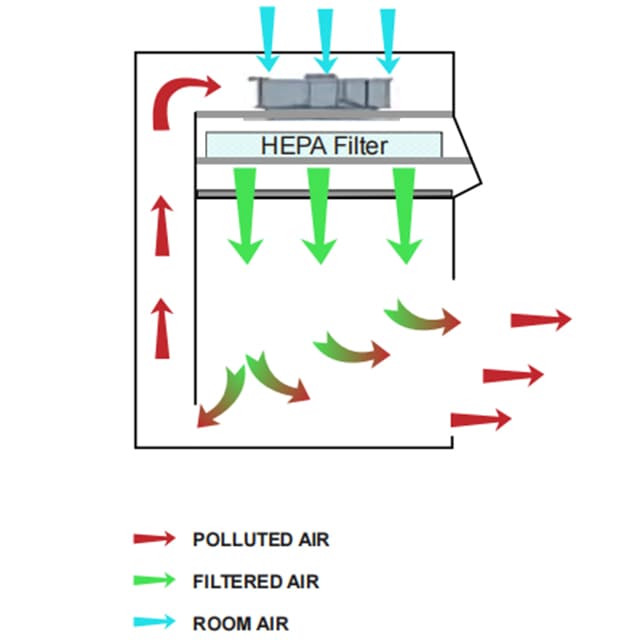

Operating principle of PCR Cabinet

WHY Labpeak

  1. 36 Months Limited Warranty
  2. CE & FDA European Standards
  3. 1-2 Days Handling and 7-30 Days Shipping

FAQ

Q: How to decontaminate a pcr niosafety cabinet

A:

  1. Turn off UV light and unplug.
  2. Remove items inside.
  3. Wipe surfaces with disinfectant.
  4. Let disinfectant sit.
  5. Turn on UV light for decontamination.

Q: Different between laminar flow cabinet and pcr workstation

A: Laminar flow cabinets provide a sterile airflow environment for various laboratory procedures, while PCR workstations are specifically designed for PCR procedures, with features such as UV decontamination and UV-resistant materials.
