Description
The biological safety cabinet class II A2 operates efficiently and safely in everyday applications. It features outstanding design and advanced technology, including patented airflow design for superior protection, ergonomic design for a safe and comfortable environment, and excellent energy efficiency to save on operating costs.

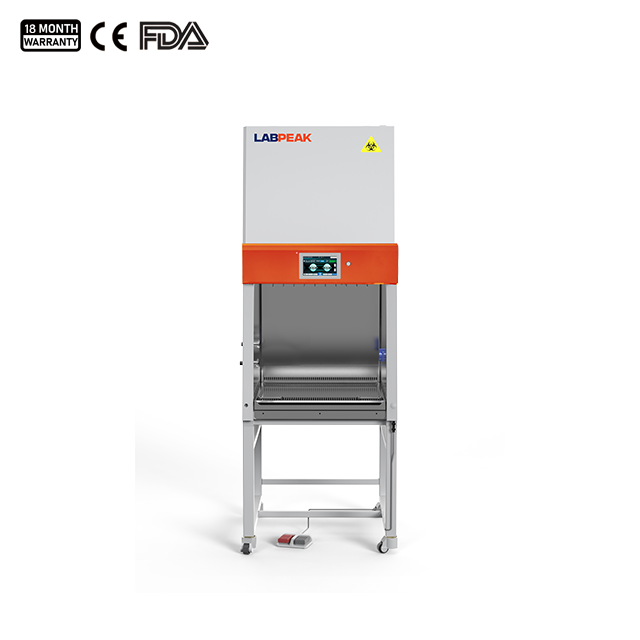

Class II A2 Biological Safety Cabinet Specifications:
Model | BSC-IIA2-LP710 |
Internal Size (W×D×H)(mm) | 610×550×600mm |
External Size (W×D×H)(mm) | 710x780x1430mm (Without base stand), 710x780x2050mm (With base stand) |
Max.Opening | 370mm |
Work Surface Height | 750mm |

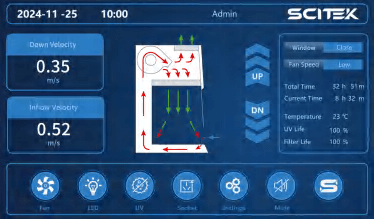

Control System | Display | 7”LCD touch screen |
Alarm | Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height |
Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust |
Downflow Velocity | 0.35m/s±0.025m/s |
Inflow Velocity | 0.52 m/s±0.025m/s |
Inflow Air Volume | 240m³/h (141CFM) |
Downflow Air Volume | 560m³/h (330CFM) |
Exhaust Air Volume | 240m³/h (141CFM) |
Air filtration System | HEPA Filter | 2pcs H14 HEPA filter, ≥99.995% efficiency at 0.3μm |
Cleanliness Grade | Class 100 (ISO14644.1 Class 5) |
Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
Work Surface | 304 stainless steel |
Front Window | Motorized, toughened glass |
Electrical System | UV Lamp | 15W×1 (Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer) |
LED Lamp | 10W×2 |
Max.Consumption | 350W (Not include socket consumption) |
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz |
Illumination | ≥900Lux |
Sound Emission | ≤60dB(A) |
Vibration of Work Surface | ≤2μm |

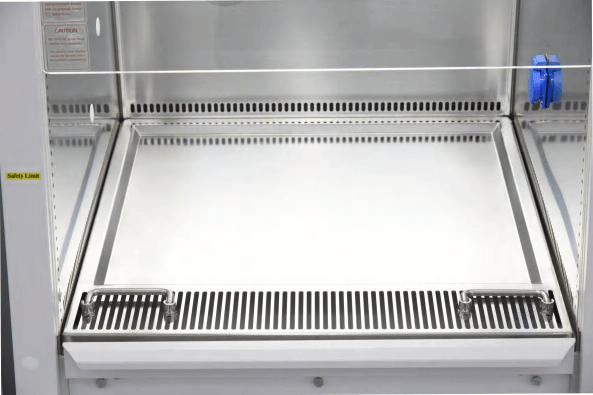

Standard Accessory | 1. Air Velocity Sensor; 2. LCD Touch Screen; 3. LED Lamp×2; 4. UV Lamp×1; 5. Explosion-Proof/Waterprof Socket×1; 6. Motorized Front Window; 7. Footmaster Caster; 8. Foot Switch; 9. Removable shallow-plate stainless steel work surface; |

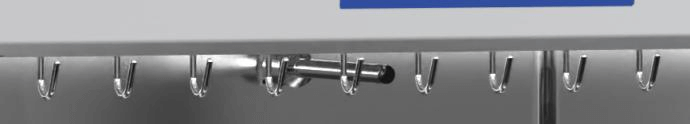

Optional Accessory | 1. Base Stand; 2. Gas tap; 3. Water tap; 4. Pressure Sensor; 5. IV Bar With Hooks; 6. ULPA filter; 7. Upgraded LED Lamp |
Net Weight | 130kg (Without base stand), 140kg (With base stand) |
Gross Weight | 165kg (Without base stand), 175kg (With base stand) |
Shipping Size (W×D×H)(mm) | 850×990×1640mm |
Shipping Volume | 1.4 m3 |
Class II Biosafety Cabinet Feature:
- The UV sterilization feature and programmable timing function allow for scheduled operation.
- The motorized front window provides dual protection with control and travel limit settings, along with an ergonomic 10° tilt angle for enhanced operator comfort.
- Incorporating a memory function ensures settings are retained in case of power interruption.
- The work area is enveloped in negative pressure to prevent leaks and enhance biosafety.
- An array of audio and visual alarms, including for abnormal airflow velocity, HEPA filter or UV lamp failure, and unsafe front window height, ensures operational safety.
- Interlock functions are in place for UV lamp and front window, UV lamp and blower, as well as for LED lamp and blower.
- A foot switch is provided for adjusting the front window height, minimizing airflow disruption caused by manual adjustments.
- Customization options are available to cater to the specific requirements of diverse clientele.
Biological Safety Cabinet Package:
Each biosafety cabinet undergoes meticulous assembly steps without any delays:
- Complete wrapping with protective film.
- Reinforced edges to prevent collisions during transport.
- Securely housed in fumigation-free plywood crates and pallets, securely bound with iron straps.
Operating principle of Biological Safety Cabinet Class II A2
WHY Labpeak
- 18 Months Limited Warranty
- CE & FDA European Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
Q: What is the difference between A1 and A2 biosafety cabinets?
A: Class I biosafety cabinets (A1) provide personnel protection only, directing airflow away from the operator and into the laboratory, while Class II biosafety cabinets (A2) offer personnel, environmental, and product protection with HEPA-filtered laminar airflow to maintain a sterile work environment.
