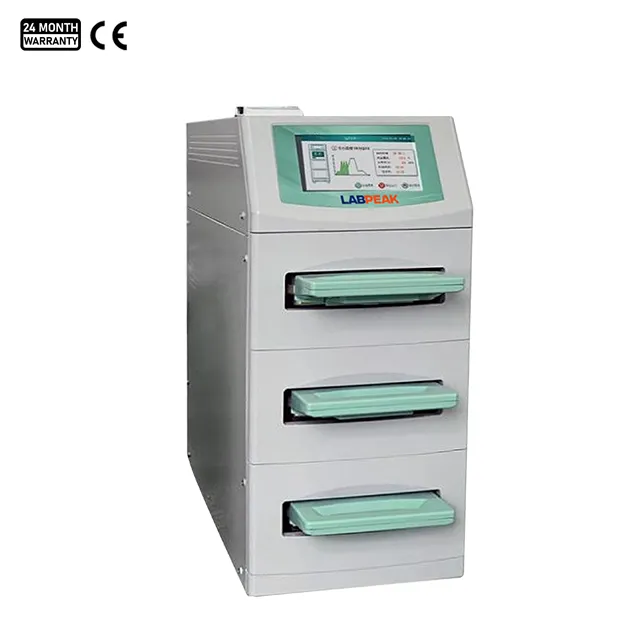

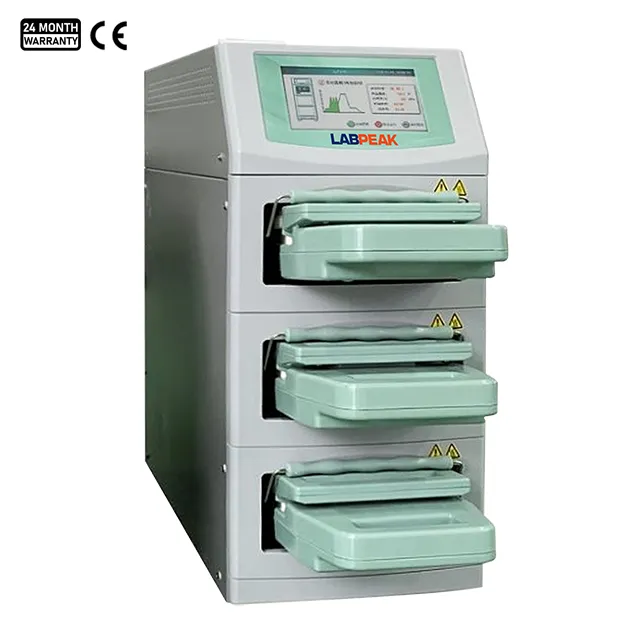

A cost-effective, space-saving, and dependable cassette sterilizer suitable for medical, laboratory, and various other applications.
The cassette sterilizer is a cutting-edge sterilization solution designed to meet the demanding needs of modern healthcare facilities. This innovative device utilizes advanced sterilization technology to ensure the highest level of efficacy and safety in the sterilization process.
| Model | ST-2000TC | ST-5000TC | ST-6000TC |
| External Size(WxDxH)(mm) | 280×600×660 | ||
| Cassette External Size (WxDxH)(mm) | 196×390×40 | 196×480×80 | 196x×196×80 |
| Cassette Internal Size (WxDxH)(mm) | 180×280×38 | 180×380×78 | 180×480×78 |
| Cassette Capacity | 1.8Lx3 | 5.2Lx3 | 6.0Lx3 |
| Rated Working Temperature | 138℃ | ||
| Rated Working Pressure | 242kPa | ||
| Working Temperature Range | 115 ℃~135 ℃ | ||
| Water Tank Capacity | 2.5L | ||
| Power Supply | AC 220V ± 22V; 50Hz ± 1Hz; | ||
| Working Medium | water vapor | ||
| Water Source Supply | ultrapure water, deionized water, laboratory water, distilled water, purified water | ||
| Working Mode | Intermittent operation (≤6 cycles/hour) | ||
| Atmospheric Pressure Range | 70.0kPa~106.0kPa | ||
| Environmental Temperature Range | +5 ℃ to+40 ℃ | ||
| Working Relative Humidity | ≤ 85% | ||
| External Size(WxDxH)(mm) | 280×600×660 | ||
| Package Size (WxDxH)(mm) | 460x710x810 | ||
| Net Weight(kg) | 60 | 84 | 86 |
| Gross Weight | 80 | 104 | 106 |
