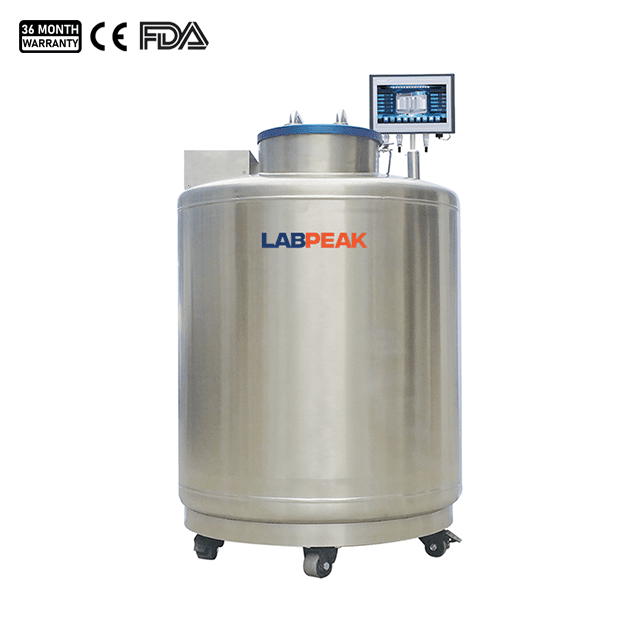

Cryobiobank Liquid Nitrogen Tank

Cryobiobank Liquid Nitrogen Tank

Suitable for research and precision laboratory use with automatic temperature monitoring and microprocessor-based liquid nitrogen level control. Now the cryobiobank liquid nitrogen tank for sale at cost price.

  • Model : LLNC-P350-326C; LLNC-P450-326C; LLNC-P550-445C; LLNC-P750-445C; LLNC-P850-465C;
  • LN₂ Capacity Under Platform Vapor Storage(L) : 55 / 55 / 80 / 80 / 135
  • LN₂ Capacity (L) : 350 / 460 / 587 / 783 / 890
  • Neck Opening (mm) : 326 / 326 / 445 / 445 / 465
Category:

Description

This cryobiobank liquid nitrogen tank uses advanced cryogenic technology to maintain a stable environment at very low temperatures. It is suitable for the long-term preservation of biological samples, cells, biologics and other temperature-sensitive samples. Whether you are conducting scientific experiments, biomedical research or medical clinical applications, this cryobiobank liquid nitrogen tank will meet your needs and provide you with optimal sample protection.

Cryobiobank Liquid Nitrogen Tank Feature:

  1. Compatible with vapor and liquid storage modes.
  2. Various capacity optional to meet your storage requirements.
  3. More specimen capacity in a limited space to reduce the storage costs.
  4. One button to demist, easy to search, pick and place specimen.
  5. User-friendly design, comfortable operation.
  6. Equipped with folding steps and workbench.

Cryobiobank Liquid Nitrogen Tank Specifications:

Model LLNC-P350-326C LLNC-P450-326C LLNC-P550-445C LLNC-P750-445C LLNC-P850-465C
LN₂ Capacity Under  Platform Vapor Storage (L) 55 55 80 80 135
LN₂ Capacity (L) 350 460 587 783 890
Neck Opening (mm) 326 326 445 445 465
Usable Internal Height (mm) 600 828 600 828 773
Outer Diameter (mm) 875 875 1104 1104 1190
Overall Height(mm) Containing Instrument Height 1326 1558 1321 1591 1559
Weight Empty (kg) 219 277 328 372 441
Operation Height (mm) 1263 1212 1266 1216 980
Weight Liquid Full (kg) 502 649 802 1005 1160
Door Width Requirement (≥mm) 895 895 1124 1124 1210
Maximum Storage Capacity of 2ml Internal Rotary Freeze Storage Tube
1.2,1.8 & 2 ml Vials (Internally Threaded) (ea) 13000 18200 27000 37800 42900
Number of Racks With 25 (5×5) Cell Boxes (ea) 4 4 12 12 4
Number of Racks With 100 (10×10) Cell Boxes (ea) 12 12 24 24 32
Number of 25 (5×5) Cell Boxes (ea) 40 56 120 168 52
Number of 100 (10×10) Cell Boxes (ea) 120 168 240 336 416
Number of Stages Per Rack (ea) 10 14 10 14 13
Maximum Straw Capacity
High Security Straw Capacity (0.5 mL) (ea) 111312 131220 203040 253800 304920
High Security Straw Capacity (0.25 mL) (ea) 254592 301120 468544 585680 699360
Number of Canisters (76 mm) (ea) 52 52 112 112 120
Number of Canisters (63 mm) (ea) 8 8 0 0 16
Number of Canisters (38 mm) (ea) 28 12 24 24 40
Number of Levels Per Canister (ea) 4 5 4 5 5
Level Height (mm) 135 135 135 135 135
Gross Weight (kg) 274 340 396 448 524.1
Shipping Size (WxDxH)(mm) 1020x1020x1520 1020x1080x1740 1250x1250x1510 1380x1250x1750 1440x1330x1750

Maximum Blood Bag Capacity
Blood Bag Type 25 mL 50 mL (4R9951) 200 mL 250 mL (4R9953) 500 mL (4R9955) 700 mL
(791 OS/U) (DF-200) (DF-700)
Total Bags 1296 792 168 300 192 96
Bags/ Frame 6 6 3 3 3 3
No. Frames 216 132 56 100 64 32
Total Bags 1728 1056 280 500 320 128
Bags/ Frame 8 8 5 5 5 4
No. Frames 216 132 56 100 64 32
Total Bags 2376 1416 336 552 408 204
Bags/ Frame 6 6 3 3 3 3
No. Frame 396 236 112 184 136 68
Total Bags 3168 1888 560 920 680 272
Bags/ Frame 8 8 5 5 5 4
No. Frames 396 236 112 184 136 68
Total Bags 3360 2072 544 944 640 320
Bags/ Frame 7 7 4 4 4 4
No. Frames 480 296 136 236 160 80

Advantages of Cryobiobank Liquid Nitrogen Tank:

  1. Liquid nitrogen tanks are equipped with advanced temperature and liquid level monitoring and alarm systems.
  2. Microprocessor controlled, vertical dual platinum resistance temperature probe for real-time temperature display
  3. Customised alarm temperature values can be set with alarm mute option.
  4. Locking lid for complete sample security.
  5. Vacuum insulated stainless steel construction with high vacuum coverage ensures excellent insulation properties.
  6. Excellent temperature stability with the lid open, innovative lid design and compact small neck opening to significantly reduce the rate of liquid nitrogen evaporation.
  7. The control system allows permanent storage of operating data.

Application of Liquid Nitrogen Tank:

  1. Long-term cryopreservation of biological samples
  2. Frozen storage of cells, tissues and biological products
  3. Sample storage for medical clinical trials and research
  4. Long-term preservation of temperature-sensitive samples in scientific research laboratories
  5. Cryopreservation for the storage of vaccines, pharmaceuticals and biological materials

WHY Labpeak

  1. 36 Months Limited Warranty
  2. CE & FDA European Standards
  3. 1-2 Days Handling and 7-30 Days Shipping
