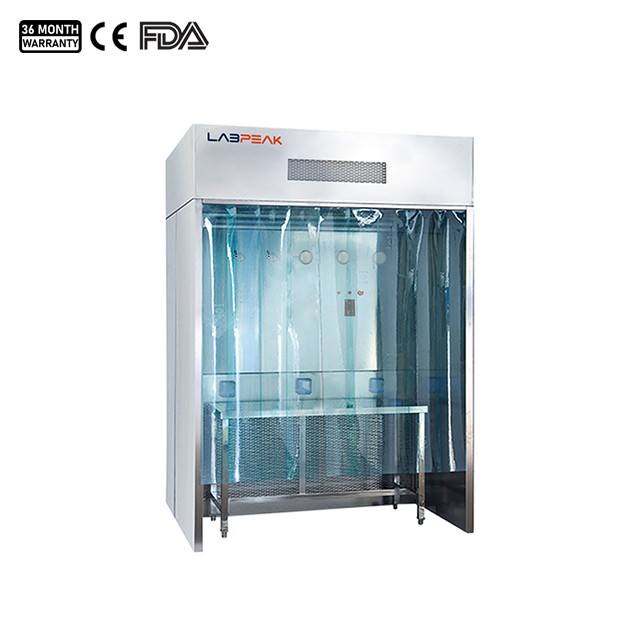

Dispensing Booth
Description
The dispensing booth is a local purification unit for pharmaceuticals, microbiology, and scientific experiments. It provides vertical, unidirectional airflow, creating negative pressure to prevent cross-contamination and maintain high cleanliness by circulating some clean air while venting the rest.
Dispensing Booth Feature:
- Touch-screen LCD control panel controls fan start and stop and adjusts air speed.
- Dispensing booth is equipped with a differential pressure gauge for real-time filter monitoring.
- Uniform flow design in the main working area protects operators and prevents environmental contamination and product cross-contamination.
Dispensing Booth Specification:
| Model | DB-1000 | DB-1300 | DB-1500 |
| External Size (WxDxH)(mm) | 1000x1350x2400 | 1300x1350x2400 | 1500x1350x2400 |
| Internal Size (WxDxH)(mm) | 900x850x1950 | 1200x850x1950 | 1400x850x1950 |
| Air Velocity | 0.38-0.58m/s | ||
| Supply Air Volume | 1800m3/h | 2600m3/h | 3000m3/h |
| Exhaust Air Volume | 10%~15% | ||
| HEPA Filter Size (WxDxH)(mm) | 720x590x90 | 1020x590x90 | 1220x590x90 |
| Clean Level | ISO 5 (Class 100) | ||
| Illumination | ≥300 lux | ||
| Sound Emission | ≤75dB | ||
| Consumption | 0.35KW | 0.55KW | 0.75KW |
| Power Supply | AC three-phase 380V/50Hz | ||
| (Optional: AC single-phase 220/110V, 50Hz) | |||
| N.W./G.W. (kg) | 290/320 | 380/420 | 470/520 |
| Shipping Size (WxDxH)(mm) | 1200x1550x2700 | 1500x1550x2700 | 1700x1550x2700 |
| Shipping Volume (m3) | 5.1 | 6.3 | 7.1 |
