Description

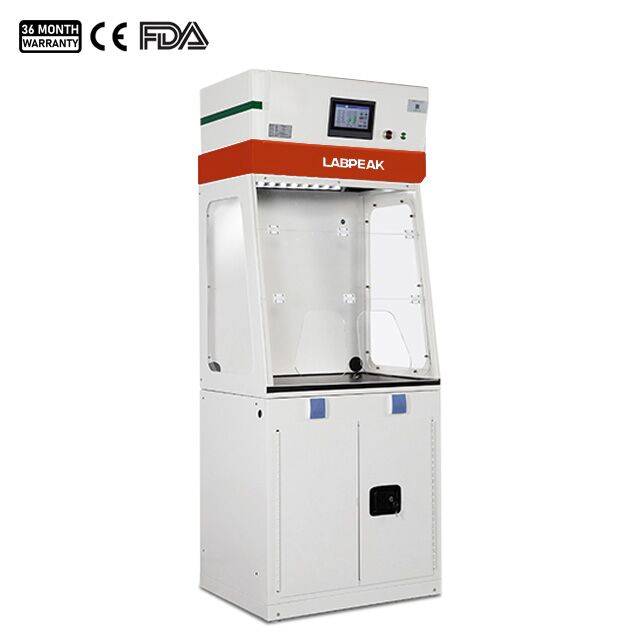

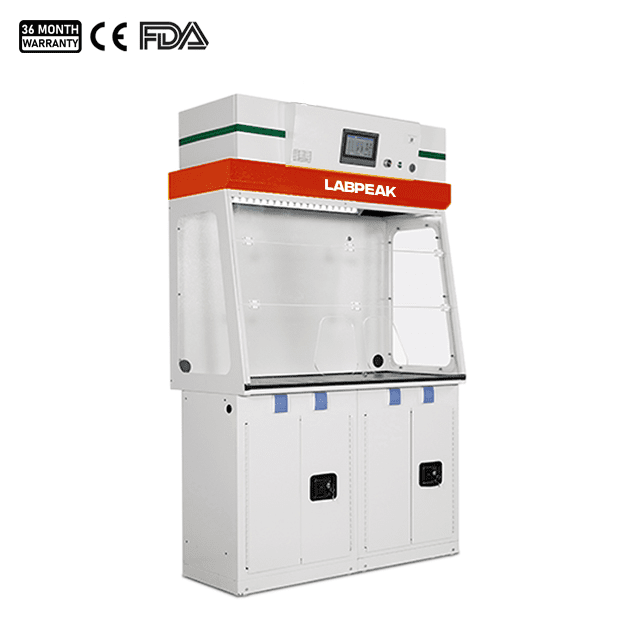

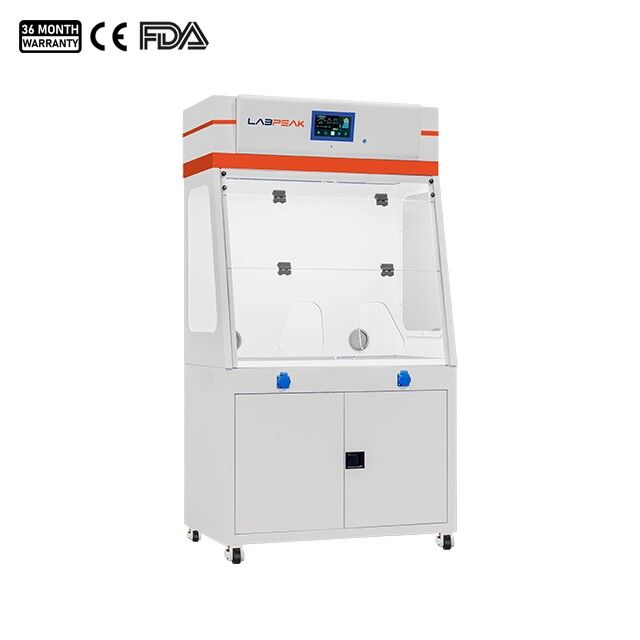

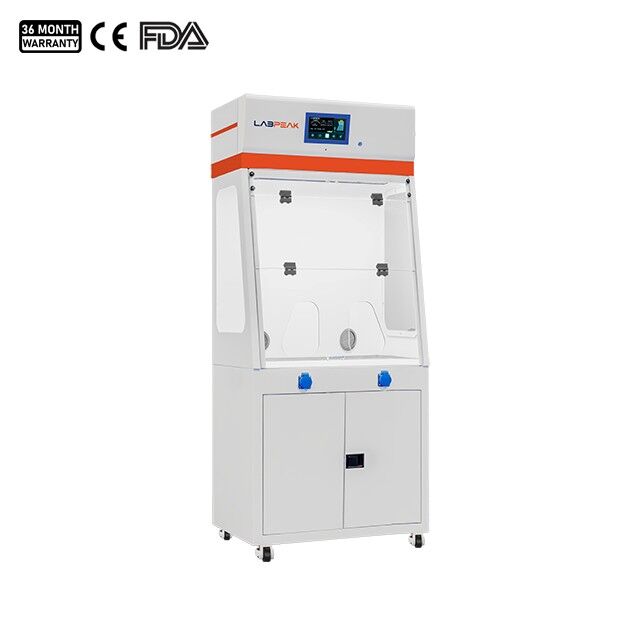

The FMH-DL Series ductless fume hood is specifically designed to ensure the safety of laboratory personnel during experiments. It effectively prevents operators from inhaling toxic, harmful, or potentially disease-causing chemicals, as well as unknown substances. This fume hood efficiently purifies the air within the laboratory and enhances the overall ventilation in the workspace.

Ductless Fume Hood Feature:

Real-time temperature and humidity monitoring system and filter saturation alarm system to ensure product safety.
Advanced filtration module can effectively adsorb harmful gases, particulate dust and other substances generated during the experiment.
Provides API interface for seamless integration with third-party platforms.
Optional WeChat Remote Monitoring
Remote management via WeChat client allows users to view historical VOC, temperature and humidity data.

Ductless Fume Hood Specification:

Model	FMH-DL-800(II)	FMH-DL-LP1000(II)	FMH-DL-1275(II)	FMH-DL-1600(II)	FMH-DL-900(II)	FMH-DL-LP1200(II)	FMH-DL-LP1500(II)
External Size (W×D×H) (mm)(Main Unit)	800×620×1245	1000×620×1245	1275×620×1245	1600×620×1245	900×620×1100	1200×620×1100	1500×620×1100
External Size (W×D×H) (mm)(Base Cabinet)	800×550×825	1000×550×825	1275×550×825	1600×550×825	__
External Size (W×D×H) (mm)(Optional Base Stand)	__				900×630×825	1200×630×825	1500×630×825
Internal Size (W×D×H) (mm)	781×574×934	981×574×934	1256×574×934	1581×574×934	875×568×700	1175×568×700	1475×568×700
Airflow Velocity	0.4~0.6m/s
Airflow Volume	230m³/h	230m³/h	690m³/h	690m³/h	230m³/h	460m³/h	690m³/h
Blower	1pcs	1pcs	3pcs	3pcs	1pcs	2pcs	3pcs
Blower	Imported PSC blower
Pre-Filter (mm)	2pcs (370×395×21)		3pcs (370×395×21)		1pcs(740x395x21)		3pcs(740×39
Pre-Filter (mm)	2pcs (370×395×21)		3pcs (370×395×21)		1pcs(740x395x21)		5×21)
Chemical Filter (Molecular Filter)	4 groups	4 groups	6 groups	6 groups	4 groups	4 groups	6 groups
	OG: Organic filter
	AG: Inorganic filter
	AM: Ammonia gas filter
	FO: Formaldehyde filter
	HEPA H14: HEPA filter
	(Customer can choose any filter type according to the number of filters and the type of chemicals to operate.)
Display	7-inch LCD touch screen				5-inch LCD touch screen
Material	External: Galvanized steel sheet, diameter ≥1.2mm, Epoxy resin electrostatic spraying, corrosion resistance;
	Front and Side: ≥ 6mm acrylic board;
	Work Surface: Epoxy resin, corrosion resistance, high temperature resistance
Alarm Function	Filter saturation alarm; Abnormal temperature and humidity alarm; VOC alarm;Fan system failure alarm
Sound Emission	≤52dB(A)
Consumption	42W	42W	126W	126W	42W	84W	126W
Power Supply	110V~240V, 50/60Hz				220V/50Hz
Standard Accessory	Base cabinet, Chemical filters, Pre-filter, LED lamp, LCD touch screen, PSC blower, Real time temperature and humidity environmental monitoring system				Chemical filters, Pre-filter, LED lamp, LCD touch screen, PSC blower, Real time temperature and humidity environmental monitoring system
Optional Accessory	Differential Sensor(detect the saturation status of the HEPA filter), WeChat Remote monitoring system				Base stand, Differential Sensor(detect the saturation status of the HEPA filter), WeChat Remote monitoring system
N.W/G.W (Main Unit)	102kg/122kg	114kg/144kg	132kg/167kg	174kg/216kg	102kg/122kg	132kg/167kg	204kg/249kg
N.W/G.W (Base Cabinet)	54kg/69kg	62kg/82kg	90kg/115kg	114kg/142kg	__
N.W/G.W (Optional Base Stand)	__				54kg/69kg	90kg/115kg	132kg/164kg
Shipping Size (W×D×H) (mm)(Main Unit)	860×680×1450	1060×680×1450	1360×680×1450	1690×680×1450	960×680×1300	1290×680×1300	1590×680×1300
Shipping Size (W×D×H) (mm)(Base Cabinet)	860×620×900	1060×620×900	1300×620×900	1660×620×900	__
Shipping Size (W×D×H) (mm)(Optional Base Stand)	__				960×700×900	1290×700×900	1560×700×900
