- Model : LCB-H-LP1100E; LCB-H-LP1300E; LCB-H-LP1500E; LCB-H-LP1800E
- External Size : 3ft / 4ft / 5ft
- Work Surface Height : 750mm
- Airflow Velocity : 0.2~0.5m/s, speed adjustable
- HEPA Filter : 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
- Sound Emission : ≤65dB(A)

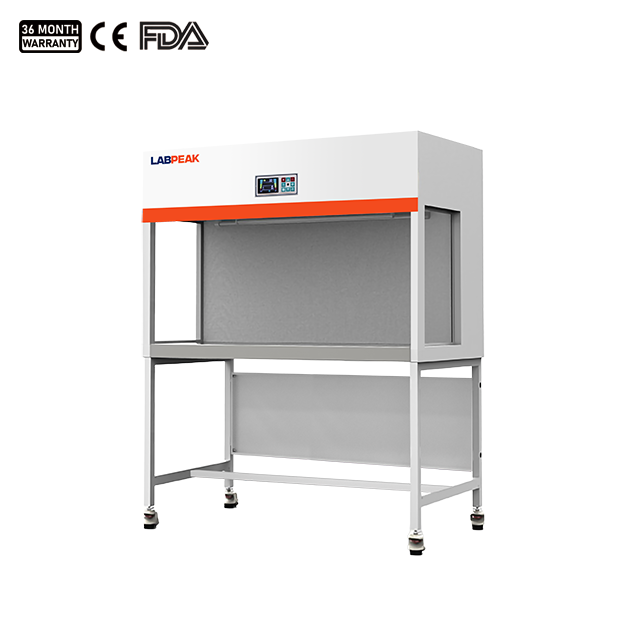

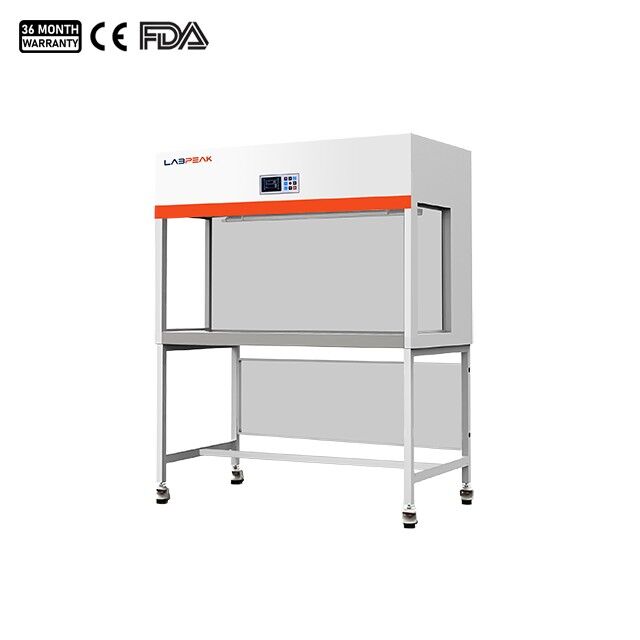

Economic Horizontal Laminar Flow Cabinet
Description
Economic Horizontal Laminar Flow Cabinet Features:
- Ergonomic control panel, centered design, easy to operate.
- Brushed stainless steel table, easy to clean.
- No direct light source design, reduce visual fatigue.
- Microprocessor control, LCD display, intuitive operation status.
- UV sterilization lamp timing function, reliable disinfection.
- UV protection tempered glass side window, safe and durable.
- Independent capacitor protection host and socket, anti-overload.
- Power failure memory function, convenient data recovery
Economic Horizontal Laminar Flow Cabinet Specifications:
| Model | LCB-H-LP1100E | LCB-H-LP1300E | LCB-H-LP1500E | LCB-H-LP1800E | |
| External Size (W×D×H) (mm) | 1100×750×1750 | 1300×750×1750 | 1500×750×1750 | 1800×750×1750 | |
| Internal Size (W×D×H) (mm) | 1020×510×620 | 1220×510×620 | 1420×510×620 | 1720×510×620 | |
| Work Surface Height | 750mm | ||||
| Control System | Microprocessor controller with LCD display, display the operating status of each function | ||||
| Airflow System | Airflow Velocity | 0.2~0.5m/s, speed adjustable | |||
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable | |||
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | ||||
| Cleanliness Grade | ISO Class 5 (formerly Class 100) | ||||
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial powder coating | |||
| Work Surface | 304 Stainless steel | ||||
| Side Window | 5 mm UV resistant tempered glass | ||||
| Electrical System | UV Lamp | 20W×1 | 30W×1 | 30W×1 | 18W×2 |
| With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | |||||
| LED Lamp | 6.5W×1 | 9.6W×1 | 9.6W×1 | 6.5W×2 | |
| Consumption | 160W | 170W | 300W | 310W | |
| Not include socket loading power consumption | |||||
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||
| Illumination | ≥900Lux | ||||
| Sound Emission | ≤65dB(A) | ||||
| Standard Accessory | 1. Base Stand; 2. LED Lamp; 3. UV Lamp; 4. Waterproof Socket×2; 5. Footmaster Caster | ||||
| Optional Accessory | Air Velocity Sensor; 2. IV Bar with Hooks | ||||
| Net Weight (kg) | 150 | 170 | 200 | 225 | |
| Gross Weight (kg) | 210 | 230 | 260 | 290 | |
| Shipping Size (W×D×H) (mm) | 1240×930×1255 | 1440×930×1255 | 1640×930×1255 | 1940×930×1255 | |
| Shipping Volume (m3) | 1.45 | 1.7 | 1.9 | 2.3 | |
Application of Economic Horizontal Laminar Flow Cabinet:
- Laminar flow cabinet is essential for creating aseptic workspaces in various environments.
- They are widely used in microbiological research labs for cultivating cultures and processing samples under sterile conditions.
- In pharmaceutical research and manufacturing, they ensure sterility during drug formulation, quality control, and sample handling.
- Laminar flow cabinets are also crucial in clinical trials, electronics assembly, and laboratory sample preparation.
Economic Horizontal Laminar Flow Cabinet Detail and Packing:
Clear display makes it easy to monitor the device’s operating status and parameter settings
How a horizontal laminar flow cabinet works?
The vertical laminar airflow (Class 100) operates on the principle of downward airflow. Clean air enters the room through HEPA filters installed in the ceiling, then flows downwards in a laminar pattern towards the floor. Finally, the air is exhausted from the room through a grated floor system.
WHY Labpeak
- 36 Months Limited Warranty
- Help meet ISO, FDA, CE quality assurance guidelines
- 1-2 Days Handling and 7-30 Days Shipping
