Description

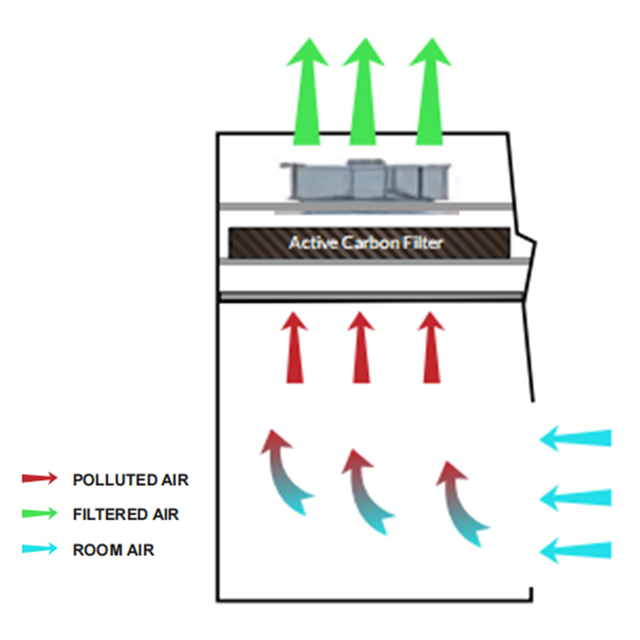

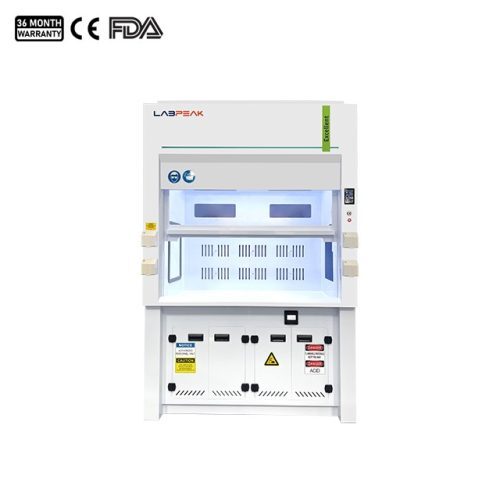

Our fume hood features an efficient extraction system that swiftly eliminates harmful gases, vapors, and particles. Utilizing cutting-edge ventilation technology. Fume hood maintains a stable airflow throughout experiments, minimizing the accumulation of toxic gases. Tailored to accommodate diverse experimental requirements, Labpeak is dedicated to delivering a laboratory environment that is both clean and safe.

Fume Hood Features:

Control panel is conveniently centered and angled downward for easy access and viewing.

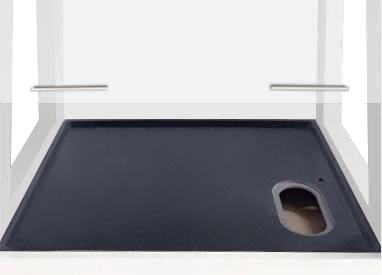

Constructed from durable psychological board, resistant to strong acids and alkalis.
Utilizing a non-direct light source design, it effectively reduces operator visual fatigue while maintaining ample illumination.

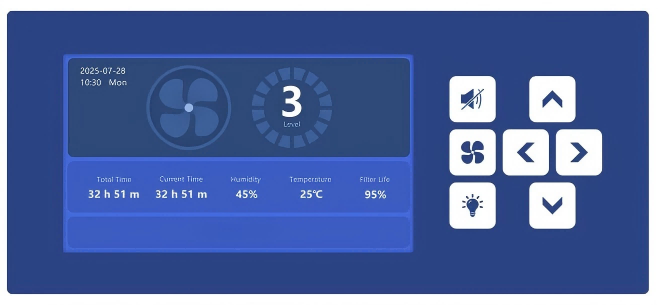

The intuitive microprocessor controller features an LCD display, providing graphical and digital feedback on the status of each function, including filter and UV life.

Fume Hood Specifications:

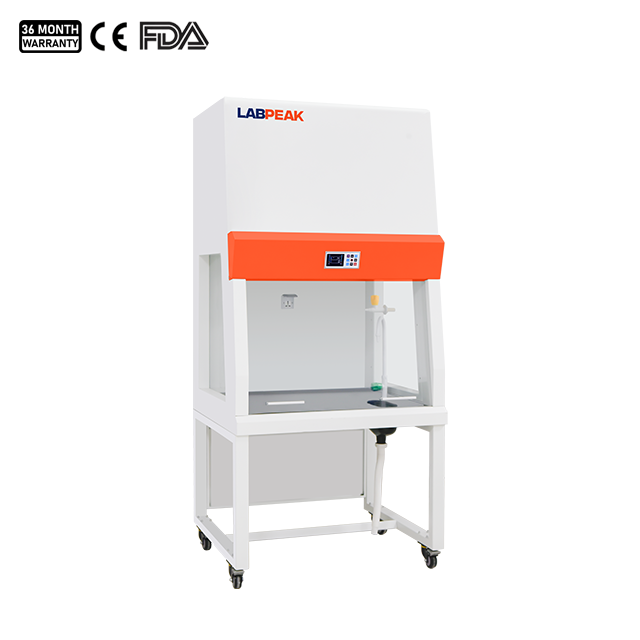

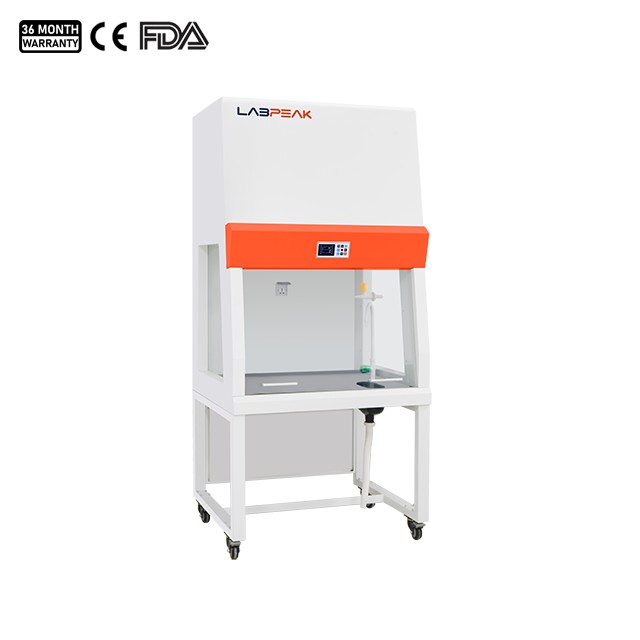

Model		FMH-D-LP1000	FMH-D-LP1200	FMH-D-LP1500	FMH-D-LP1800
External Size (WxDxH) (mm)		1000×850×2150	1220×850×2150	1525×850×2150	1830×850×2150
Internal Size (WxDxH) (mm)		880×730×745	1100×730×745	1405×730×745	1710×730×745
Max.Opening		520mm
Work Surface Height		750mm
Control System	Display	Microprocessor controller with LCD display, display the operating status of each function
	Interlock	Front sliding sash interlock with fan and UV lamp
	Life Indicator	Filter and UV life indicators facilitate a timely replacement plan
Airflow System	Airflow Velocity	0.3~0.8 m/s, speed adjustable

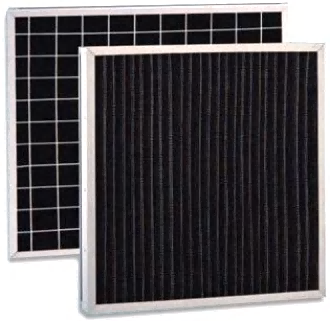

Air filtration System	Filter	1pcs Active Carbon Filter
Cabinet Construction	Main Body	Electro-Galvanized steel with antimicrobial powder coating
	Work Surface	Solid physicochemical board, resistant to acid and alkali
	Front Window	Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle
	Side window	5 mm UV resistant tempered glass
Electrical System	UV Lamp	20W×1	30W×1	30W×1	30W×1
		With timing function, Interlock with front sliding sash.
		Emission of 253.7 nanometers for best sterilization effect.
	LED Lamp Consumption	6.5W×1	9.6W×1	9.6W×1	9.6W×1
		400W	500W	500W	500W
		Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤68dB(A)
Standard Accessory		1.Base Stand; 2.LED Lamp; 3.UV Lamp; 4.Waterproof Socket; 5.Water Tap; 6.Gas Tap; 7.Water Sink; 8.10m Exhaust Duct; 9.Active Carbon Filter
Optional Accessory		Base Cabinet
Net Weight (kg)		195	215	250	315
Gross Weight (kg)		250	280	330	390
Shipping Size (W×D×H) (mm)		1140×1100×1635	1360×1100×1635	1665×1100×1635	1970×1100×1635
Shipping Volume (m³)		2	2.5	3.1	3.6

Advantages of Fume Hood:

Reliability:

Front sliding sash interlock with fan and UV lamp.

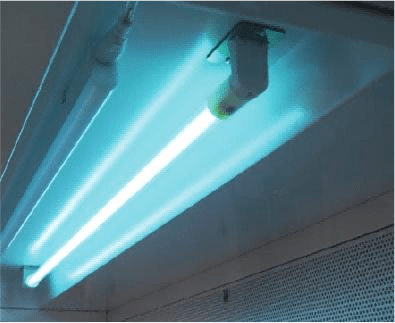

UV sterilization with UV lamp timing function.
Front sash and side windows are made of UV-resistant tempered glass.
The host and sockets have independent capacitors to prevent current overload.
Memory function in case of power-failure.

Convenience:

HEPA filter and UV life indicators facilitate a timely replacement plan.
Two side glass windows installed for easy experiment observation.
Easy-to-change pre-filter installed could extend the HEPA filter’s lifetime.
Fume hood is equipped with temperature sensor to show the real temperature during operation.
Waterproof socket provide convenience for small instruments to be used in the operating area.

Fume Hood Packing:

During transport, our fume hood is meticulously protected and securely installed to ensure its safety. It is surrounded by dense packing material to prevent any collision or vibration damage during transit.

We offer a variety of shipping options including sea freight, air freight, land freight, and express service. Additionally, we accept a wide range of trade terms including EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, and DDP to accommodate your specific shipping needs.

WHY Labpeak

18 Months Limited Warranty
Help meet ISO, FDA, CE quality assurance guidelines
1-2 Days Handling and 7-30 Days Shipping

FAQ

Do all fume hoods have filters?

Fume hoods offer flexibility in configuration, with options for ducted or ductless operation, as well as filtered or unfiltered designs to suit your specific requirements. Filtered fume hoods feature a carbon filter for effective removal of hazardous fumes and vapors.

Where is a fume hood located?

Fume hoods should be positioned away from sources of air movement or disturbance. They should be placed clear of high-traffic zones, air vents, doors, and windows that can be opened or closed to minimize disruptions to airflow.

Is a fume hood a laminar flow hood?

No
Laminar Flow Hood: Laminar flow hoods provide a highly controlled, sterile workspace by directing filtered air in a unidirectional flow across the work surface. They are ideal for applications requiring strict cleanliness standards, such as microbiology, cell culture, and semiconductor manufacturing.

Ductless Fume Hood: Ductless fume hoods utilize filtration systems to capture and remove hazardous fumes, vapors, and particles from the air within the hood. They are suitable for applications where ductwork is not feasible or practical, offering flexibility in placement and installation. However, they require regular maintenance and filter replacement to maintain effectiveness.

Ducted Fume Hood: Ducted fume hoods are connected to an external exhaust system via ductwork, allowing hazardous fumes to be safely vented outside the laboratory. They provide superior containment and protection for operators, making them suitable for handling highly toxic or volatile chemicals. Ducted hoods require proper design and installation to ensure efficient airflow and containment.
