- Model : LST-PH150YDA; LST-PH200YDA; LST-PH280YDA; LST-PH400YDA; LST-PH500YDA;
- Working Pressure : 0.22MPa
- Max. Working Temperature : 134℃
- Sterilization Temperature : 40~134℃

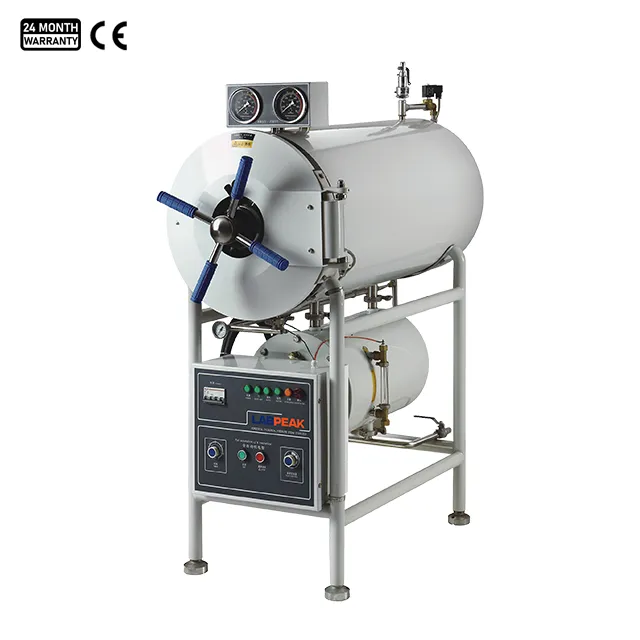

Horizontal Pressure Steam Sterilizer
Description
The horizontal pressure steam sterilizer uses gravity exchange to fully expel cold air from the chamber, ensuring effective sterilization. Its control system automatically regulates steam flow based on chamber temperature during the sterilization process. This sterilizer is ideal for clinics, research institutes, and other organizations to sterilize surgical instruments, fabrics, glassware, and culture media efficiently.
Horizontal Pressure Steam Autoclave Feature:
- Fully automatic sterilization process, user-friendly operation.
- Includes drying function for medical dressings.
- Equipped with over-temperature and over-pressure protection.
- Door remains locked until chamber pressure drops below 0.027MPa; operation prevented if door isn’t properly closed.
- Safety valve releases steam when internal pressure exceeds 0.24MPa.
- Automatically shuts off power and alarms in case of water shortage.
- Stainless steel chamber for durability.
Horizontal Pressure Steam Autoclave Specifications:
| Model | LST-PH150YDA | LST-PH200YDA | LST-PH280YDA | LST-PH400YDA | LST-PH500YDA |
| Capacity | 150L | 200L | 280L | 400L | 500L |
| Chamber Size (ΦxH)(mm) | Φ440×1000 | Φ515×1000 | Φ600×1000 | Φ700×1100 | Φ700×1300 |
| Working Pressure | 0.22MPa | ||||
| Max. Working Temperature | 134℃ | ||||
| Sterilization Temperature | 40~134℃ | ||||
| Sterilization Time Range | 0~60min | ||||
| Drying Time Range | 0~60min | ||||
| Temp. Uniformity | ≤±2℃ | ||||
| Consumption | 9KW | 9KW | 12KW | 18KW | 18KW |
| Power Supply | 380V, 50Hz | ||||
| External Size (WxDxH)(mm) | 1400x600x1300 | 1400x670x1650 | 1400x770x1780 | 1430x880x1830 | 1800x900x1820 |
| Net Weight | 240kg | 260kg | 365kg | 420kg | 470kg |
| Gross Weight | 320kg | 350kg | 465kg | 530kg | 580kg |
| Shipping Size (WxDxH)(mm) | 1560x750x1850 | 1560x820x1850 | 1680x920x1950 | 1600x1050x2050 | 1850x1050x2050 |
