Description

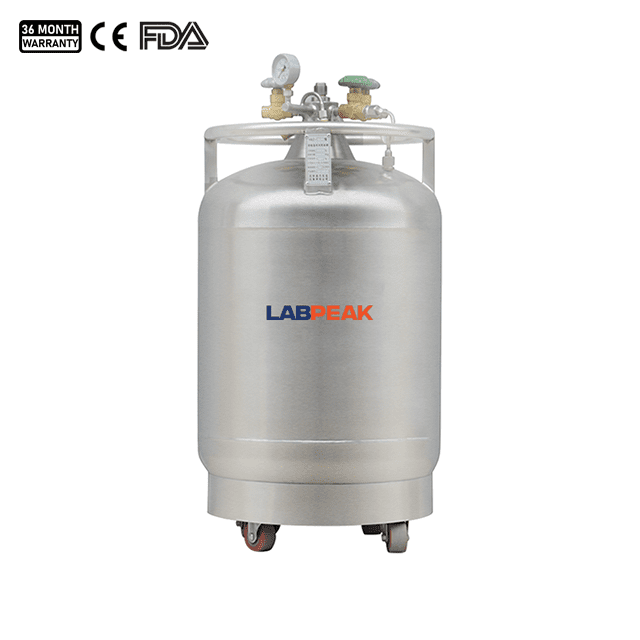

The liquid nitrogen filling tank is a highly efficient piece of equipment specifically designed for the safe storage and filling of liquid nitrogen. It utilizes double vacuum insulation technology to ensure that liquid nitrogen remains stable for long periods in cryogenic environments. Whether in laboratories, medical facilities, or industrial applications, this liquid nitrogen refueling tank provides a precise and safe solution for the storage and delivery of liquid nitrogen.
Liquid Nitrogen Filling Tank Feature:
- Double-layer vacuum adiabatic design minimises heat transfer and ensures long-time low-temperature storage of liquid nitrogen.
- The safety valve and pressure adjustment can effectively prevent overpressure and liquid nitrogen leakage, guaranteeing operation safety.
- With a liquid level display and flow rate adjustment function, it is convenient for users to precisely control the liquid nitrogen filling quantity.
Liquid Nitrogen Filling Tank Specifications:
| Model |
LLNC-P5-40 |
LLNC-P15-40 |
LLNC-P30-40 |
LLNC-P50-40 |
| Performance |
| LN₂ Capacity (L) |
5 |
15 |
30 |
50 |
| Neck Opening (mm) |
40 |
40 |
40 |
40 |
| Daily Evaporation Rate of Static Liquid Nitrogen (%) |
3 |
2.5 |
2.5 |
2 |
| Transfusion Volume (L/min) |
/ |
/ |
/ |
/ |
| Maximum Storage Capacity |
| Overall Height (mm) |
510 |
750 |
879 |
991 |
| Outer Diameter (mm) |
329 |
404 |
454 |
506 |
| Weight Empty (kg) |
15 |
23 |
32 |
54 |
| Standard Working Pressure (mPa) |
0.05 |
| Maximum Working Pressure (mPa) |
0.09 |
| Setting Pressure of the First Safety Valve (mPa) |
0.099 |
| Setting Pressure of the Second Safety Valve (mPa) |
0.15 |
| Pressure Gauge Indication Range (mPa) |
0~0.25 |
| Gross Weight (kg) |
25.88 |
31.86 |
44.81 |
60.74 |
| Shipping Size (WxDxH)(mm) |
390x390x785 |
490x490x935 |
500x500x1080 |
605x605x1250 |
| Model |
LLNC-P100-40 |
LLNC-P150-40 |
LLNC-P200-40 |
LLNC-P240-40 |
LLNC-P300-40 |
LLNC-P500-40 |
| Performance |
| LN₂ Capacity (L) |
100 |
150 |
200 |
240 |
300 |
500 |
| Neck Opening (mm) |
40 |
40 |
40 |
40 |
40 |
40 |
| Daily Evaporation Rate of Static Liquid Nitrogen (%) |
1.3 |
1.3 |
1.2 |
1.2 |
1.1 |
1.1 |
| Transfusion Volume (L/min) |
/ |
/ |
/ |
/ |
/ |
/ |
| Maximum Storage Capacity |
| Overall Height (mm) |
1185 |
1188 |
1265 |
1350 |
1459 |
1576 |
| Outer Diameter (mm) |
606 |
706 |
758 |
758 |
857 |
1008 |
| Weight Empty (kg) |
75 |
102 |
130 |
148 |
202 |
255 |
| Standard Working Pressure (mPa) |
0.05 |
| Maximum Working Pressure (mPa) |
0.09 |
| Setting Pressure of the First Safety Valve (mPa) |
0.099 |
| Setting Pressure of the Second Safety Valve (mPa) |
0.15 |
| Pressure Gauge Indication Range (mPa) |
0~0.25 |
| Gross Weight (kg) |
95.43 |
129 |
161.43 |
174 |
229.5 |
321 |
| Shipping Size (WxDxH)(mm) |
710x710x1410 |
810x810x1400 |
860x860x1450 |
860x860x1530 |
960x960x1640 |
1120x1120x1770 |
Advantages of Liquid Nitrogen Filling Tank:
- Unique neck design, low evaporation loss rate.
- With rollers for easy to move.
- Level display is optional.
- Regulator is optional for stable pressure.
- Solenoid valve is optional.
Applications of Liquid Nitrogen Filling Tank:
- Scientific experiments: Liquid nitrogen filling tanks are used for ultra-low temperature experiments, sample cryopreservation, and cryoanalysis equipment cooling.
- Medical cryopreservation: For storage and delivery of cryotherapy and cell and tissue samples.
- Industrial applications: For cryogenic processing and cold treatment of metals.
- Food industry: Rapid freezing of food to ensure food freshness and quality.
- Electronics industry: Cryogenic testing and cooling of electronic components to ensure their performance and stability under extreme conditions.
WHY Labpeak
- 36 Months Limited Warranty
- CE & FDA Standards
- 1-2 Days Handling and 7-30 Days Shipping
