- Model : PCR-LP800;
- Work Surface Height : 750mm
- Available Sizes : 2ft
- Illuminating Lamp : ≥500Lx
- Airflow Velocity : 0.2~0.5m/s, Speed adjustable
- Pre-Filter : 1pcs, Polyester fiber, washable

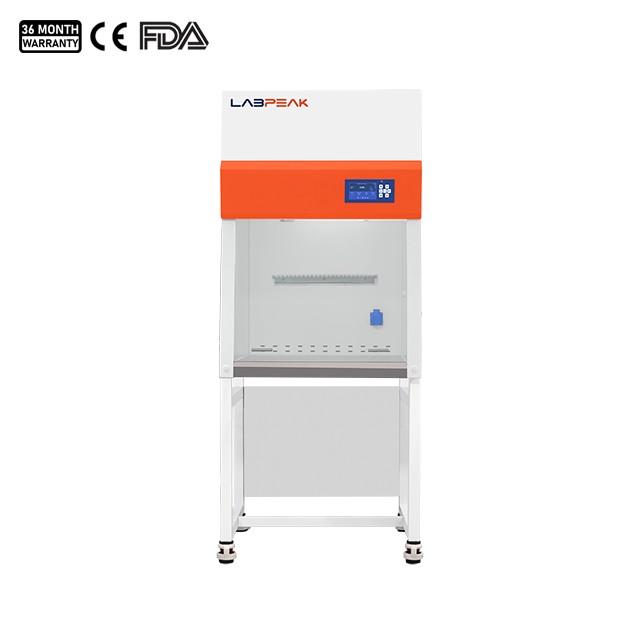

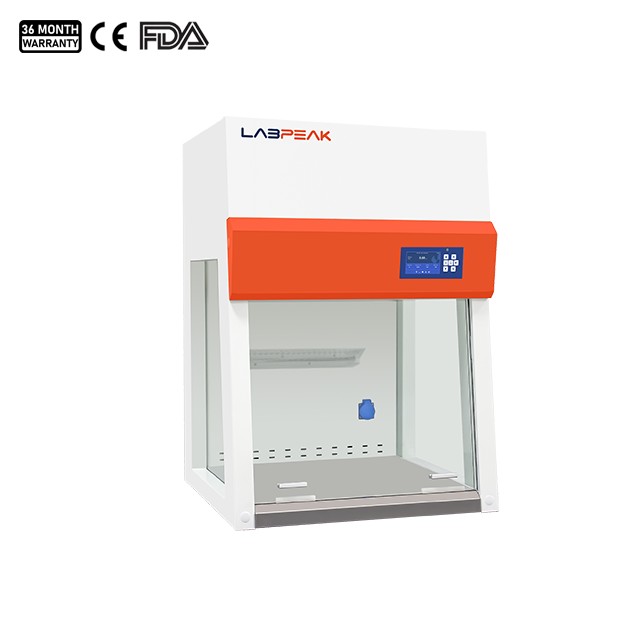

PCR Cabinet PCR-LP800
Description
PCR cabinet is safety devices that protect laboratory staff from possible contamination and cross-contamination during PCR experiments. Our PCR cabinets are manufactured to the highest industry standards to ensure a safe and reliable laboratory environment. Each component undergoes stringent quality control checks to ensure consistent and reliable performance.
Advantages of PCR Cabinet:
Safety Features:
- Audible and visual alarms for filter and UV lamp life status.
- Front sliding sash interlock system linked with fan and UV lamp operation.
- UV-resistant tempered glass used for front sash and side windows.
- Independent capacitors for host and sockets to prevent current overload.
User-friendly Design:
- Standard shelves with IV bar included.
- Memory function to retain settings in case of power failure.
- HEPA filter and UV life indicators for easy replacement scheduling.
- Dual-sided glass windows for convenient experiment observation.
- Easy-to-replace pre-filter extends HEPA filter lifespan.
- Temperature sensor displays real-time operating temperature.
- Waterproof sockets for small instrument use in the operating area.
PCR Cabinet Specifications:
| Model | PCR-800 | |
| External Size (WxDxH)(mm) | 710x680x1050 (Without Base Stand) | |
| 710x680x1680 ( With Base Stand) | ||
| Internal Size (WxDxH)(mm) | 610x590x625 | |
| Work Surface Height | 750mm | |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Alarm | Audio and visual alarm on filter and UV changing | |
| Interlock | Front sliding sash interlock with fan and UV lamp | |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
| Airflow System | Airflow Velocity | 0.2~0.5m/s, Speed adjustable |
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable |
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | |
| Cleanliness Grade | ISO Class 5 (formerly Class 100) | |
| Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass | |
| Electrical System | UV Lamp | 10W×2 |
| With timing function from 0 to 999 minutes | ||
| Interlock with front sliding sash. | ||
| Emission of 253.7 nanometers for best sterilization effect. | ||
| LED Lamp | 8W×2 | |
| Consumption | 149W (Not include socket loading power consumption) | |
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | |
| Illumination | ≥500Lux | |
| Sound Emission | ≤62dB(A) | |
| Standard Accessory | 1.LED Lamp×2; 2.UV Lamp×2; 3.Waterproof Socket×1; 4.Shelves with IV Bar | |
| Optional Accessory | 1.Base stand; 2.Gas Tap | |
| Net Weight | 80kg (Without base stand), 130kg (With base stand) | |
| Gross Weight | 115kg (Without base stand), 165kg (With base stand) | |
| Shipping Size (W×D×H)(mm) | 920x855x1190 | |
| Shipping Volume | 0.94m3 | |
PCR Cabinet Feature:
- Our PCR cabinet is equipped with specially designed perforations on the back wall of the work zone to effectively eliminate air turbulence and prevent the formation of dead air corners.
- Featuring a versatile digital timer, our PCR cabinet allows for UV light exposure in continuous mode or in user-selected increments ranging from 15 to 999 minutes, ensuring thorough deactivation of DNA and RNA contaminants.
- With an intuitive microprocessor controller featuring an LCD display, our PCR cabinet offers easy operation and provides clear graphical and digital status updates for each function, including filter and UV lamp life.
- Designed with user comfort in mind, the control panel is centrally located and angled downwards for convenient access and optimal viewing.
- Utilizing a non-direct light source design, our PCR cabinet effectively reduces operator visual fatigue while maintaining adequate illumination.
- Available in various sizes from 2 feet to 6 feet, our PCR cabinet can be used on a benchtop or mounted on a mobile base, offering flexibility to suit different laboratory setups.
- Featuring a brushed stainless steel work surface, our PCR cabinet ensures easy cleaning and maintenance, contributing to a hygienic laboratory environment.
PCR Cabinet Package:
Each PCR cabinet undergoes meticulous assembly steps without any delays:
- Complete wrapping with protective film.
- Reinforced edges to prevent collisions during transport.
- Securely housed in fumigation-free plywood crates and pallets, securely bound with iron straps.

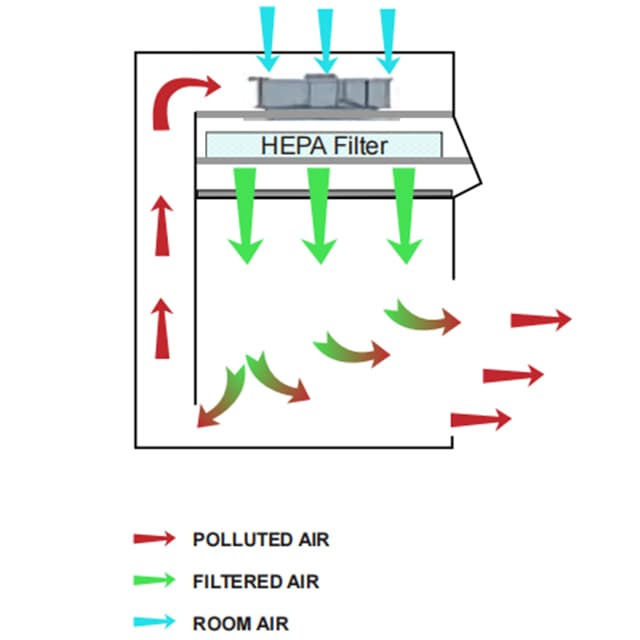

Operating principle of PCR Cabinet
WHY Labpeak
- 36 Months Limited Warranty
- CE & FDA European Standards
- 1-2 Days Handling and 7-30 Days Shipping
FAQ
Q: How to decontaminate a pcr niosafety cabinet
A:
- Turn off UV light and unplug.
- Remove items inside.
- Wipe surfaces with disinfectant.
- Let disinfectant sit.
- Turn on UV light for decontamination.
Q: Different between laminar flow cabinet and pcr workstation
A: Laminar flow cabinets provide a sterile airflow environment for various laboratory procedures, while PCR workstations are specifically designed for PCR procedures, with features such as UV decontamination and UV-resistant materials.
