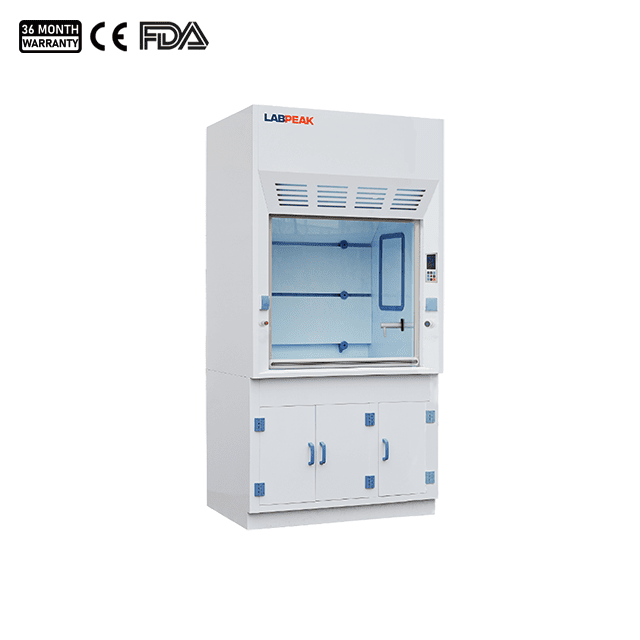

PP Fume Hood

Functional and energy-efficient PP fume hoods provide an environmentally friendly solution for the laboratory environment and operators.

Model : FMH-DP-LP1000; FMH-DP-LP1200; FMH-DP-LP1500; FMH-DP-LP1800
Work Surface Height : 820mm
Max Opening : 740mm
Air Velocity : 0.3~0.8m/s, speed adjustable

Description

PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.

PP Fume Hood Features:

The mainframe is constructed from integrally welded PP (polypropylene) material, offering exceptional resistance to strong acids, alkalis, and corrosion.
The PP fume hood is equipped with a microprocessor control system and LCD display for precise control and monitoring.
Features a top-shield suction design and a deflector made of homogeneous PP material, providing robust resistance to acids and alkalis.

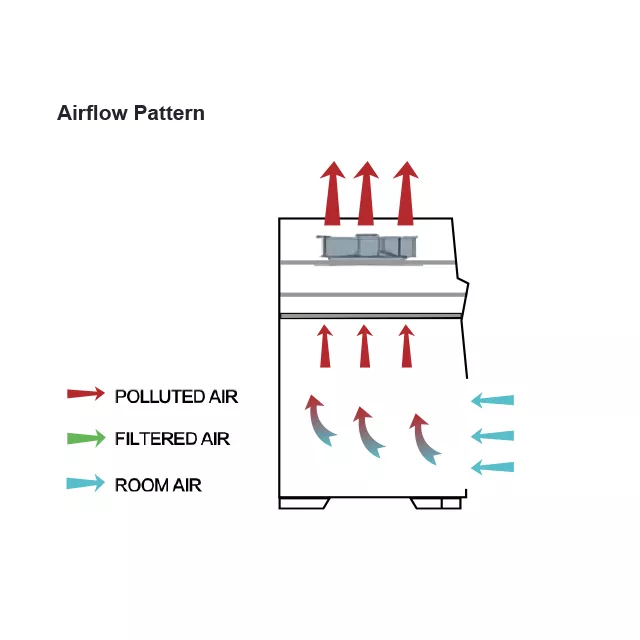

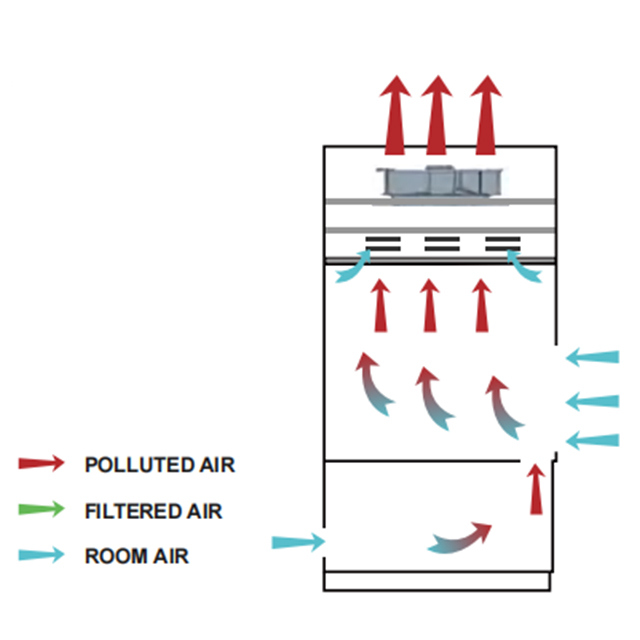

Ensures optimal exhaust gas capture performance with no airflow dead angles.
The operating surface includes water-retaining and anti-overflow treatments for enhanced safety.

PP Fume Hood Specifications:

Model		FMH-DP-LP1000	FMH-DP-LP1200	FMH-DP-LP1500	FMH-DP-LP1800
External Size (WxDxH) (mm)		1047x800x2450	1247x800x2450	1547x800x2450	1847x800x2450
Internal Size (WxDxH)(mm)		787x560x700	987x560x700	1287x560x700	1587x560x700
Max.Opening		740mm
Work Surface Height		820mm

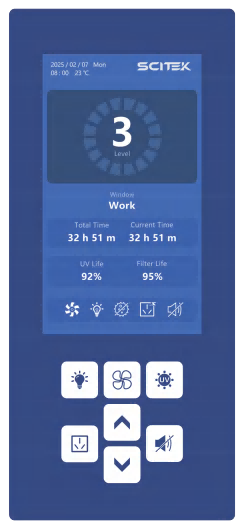

Control System	Display	Microprocessor controller with LCD display, display the operating status of each function
Airflow System	Airflow Velocity	0.3~0.8 m/s, speed adjustable
Cabinet Construction	Main Body	Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion.
	Work Surface	Chemical resistant phenolic resin
	Front Window	Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali,
Electrical System	LED Lamp	12W×2	12W×2	22W×2	18W×2
	Blower	Built-in PP centrifugal blower(2 blowers for FMH-1800DP only); Speed adjustable
	Consumption	400W	400W	500W	700W
	Consumption	Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤68dB(A)
Standard Accessory		1.Base Cabinet;
		2.LED Lamp;

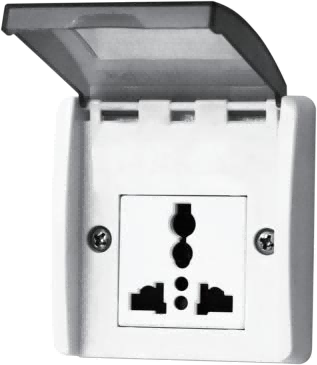

		3.Waterproof Socket×2;
		4.Water Tap (PP);
		5.Gas Tap (PP);
		6.Gas & Water Remote Control Valve;

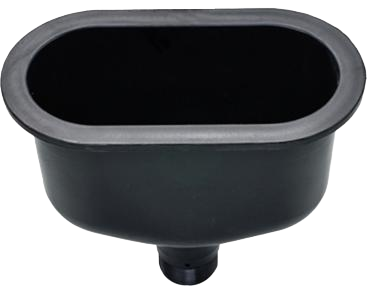

		7.Water Sink;

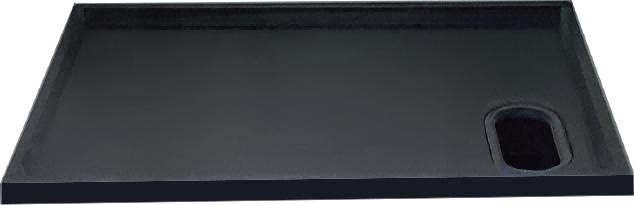

		8.Work Table: Chemical resistant phenolic resin;
		9.PP Centrifugal Blower*1(2 for FMH-1800DP only);
		10.10m PVC aluminum foil composite exhaust duct, Diameter: 250mm;
		(2 pcs of 10m exhaust duct for FMH-1800DP only, duct is retractable and can be cut freely.) Pipe strap x2 (4 pcs for FMH-1800DP only);
Optional Accessory		1.PP Work Table, epoxy resin board, ceramic board or Solid core physical and chemical board;
		2.Active Carbon Filter;
		3.External PP centrifugal blower
Gross Weight (kg)	Main Body	137	155	180	206
Gross Weight (kg)	Base Cabinet	89	99	114	140
Shipping Size (W×D×H) (mm)	Main Body	1188x938x1612	1388x938x1612	1688x938x1612	1988x938x1612
	Main Body	1188x938x1612	1388x938x1612	1688x938x1612	1988x938x1612	Base Cabinet	1188x888x1000	1388x888x1000	1688x888x1000	1988x888x1000
	Shipping Volume (m³)		2.9	3.4	4.1	4.8

WHY Labpeak

36 Months Limited Warranty
Help meet ISO, FDA, CE quality assurance guidelines
1-2 Days Handling and 7-30 Days Shipping

FAQ

What is the best material for a fume hood?

Polypropylene. Polypropylene is undoubtedly the material of choice when constructing modern fume cupboards.

Advantages of Polypropylene Fume Hoods

Polypropylene has excellent chemical resistance to most acids, bases, solvents and chemical reagents.
Polypropylene has high mechanical strength and impact resistance.
Polypropylene can usually withstand temperatures of around 120°C.
Polypropylene fume hood has a smooth surface that does not easily adhere to dirt and chemical residues, making it easy to clean.
