- Model : LST-PH60PV; LST-PH80PV; LST-PH100PV; LST-PH135PV; LST-PH150PV; LST-PH185PV; LST-PH200PV; LST-PH300PV; LST-PH450PV
- Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
- Sterilization Temperature (℃) : 105~136
- Max. Sterilization Pressure (Mpa) : 0.23

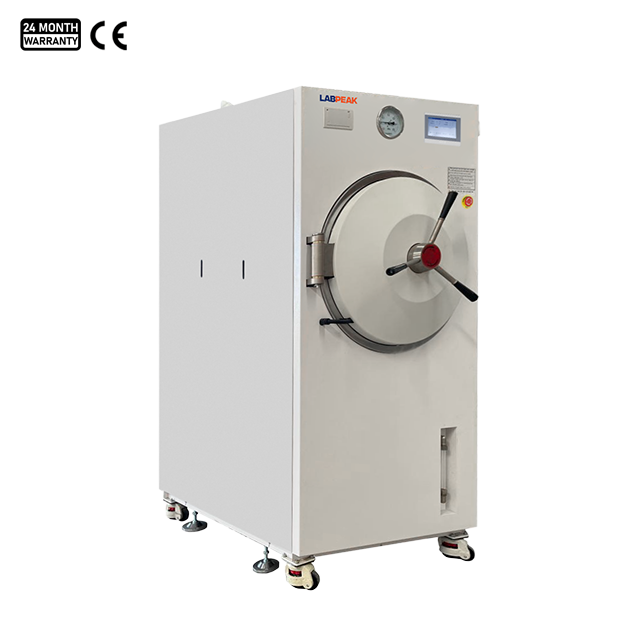

Horizontal Pulse Vacuum Autoclave 60-450L
Description
Horizontal Pulse Vacuum Autoclave Feature:
- Overheat Protection: Automatically cuts off heating with alarms when overheating occurs.
- Safety Interlocks: Prevents operation if the door isn’t locked or opens under pressure or power loss.
- Temperature Interlock: Ensures liquids cool to safe levels before the door can open.
- Anti-Burning Protection: Stops heating with alarms when water is insufficient.
- Steam Pressure Valve: Automatically releases pressure if it exceeds the limit.
- Advanced Sterilization: LCD-controlled automatic sterilization with pulsed vacuum, drying, and steam generator, ensuring efficient air removal and contamination prevention. Optional printer for real-time monitoring.
Horizontal Pulse Vacuum Autoclave Specifications:
Model | LST-PH60PV | LST-PH80PV | LST-PH100PV | LST-PH135PV | LST-PH150PV | LST-PH185PV | LST-PH200PV | LST-PH300PV | LST-PH450PV |
Capacity | 60L | 80L | 100L | 135L | 150L | 185L | 200L | 300L | 450L |
External Size (WxDxH)(mm) | 985x600x1450 | 985×600 | 1200×600 | 1000×710 | 1330×710 | 1250×710 | 1320×710 | 1350×900 | 1750×900 |
Chamber Size (ØxH)(mm) | Ø386×500 | Ø386×700 | Ø386×950 | Ø500×700 | Ø500×780 | Ø500×95 | Ø500×1000 | Ø650×950 | Ø650×1360 |
Chamber Material | SUS304 | ||||||||
Sterilization Temperature | 105~136 ℃ | ||||||||
Designed Temperature | 150℃ | ||||||||
Max.Working Temperature | 136 ℃ | ||||||||
Temp.Accuracy | 0.1℃ | ||||||||
Temp.Uniformity | ≤±0.5℃ | ||||||||
Designed Pressure | -0.1/0.3Mpa | ||||||||
Sterilization Pressure | 0.23Mpa | ||||||||
Pressure Resolution | 0.1KPa | ||||||||
Ultimate Vacuum | -0.096MPa | ||||||||
Temp. Controller | PID control by microprocessor | ||||||||
Display | LCD touch screen | ||||||||
Drying Function | YES | ||||||||
Drying Time | 15min | ||||||||
Sterilization Program | ●Medical instrument program ●Luminal instruments ●Dressings program ●Rubber program ●Liquid program ●BD Test program ●Vacuum Test progrm Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test. |
||||||||
Power Consumption | 5.7KW | 6.6KW | 6.6KW | 12KW | 12KW | 12KW | 12KW | 20KW | 20KW |
Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Standard Sterilization Shelf | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs |
Standard Accessories | Printer | ||||||||
Net Weight | 105kg | 120kg | 140kg | 225kg | 240kg | 255kg | 265kg | 350kg | 480kg |
Gross Weight | 165kg | 185kg | 210kg | 315kg | 340kg | 355kg | 380kg | 470kg | 570kg |
Shipping Size (WxDxH)(mm) | 1280x700x1600 | 1280x700x1600 | 1450x700x1600 | 1300x850x1900 | 1400x900x1900 | 1440x930x2020 | 1490x930x2020 | 1650x1100x2120 | 2100x1100x2120 |
