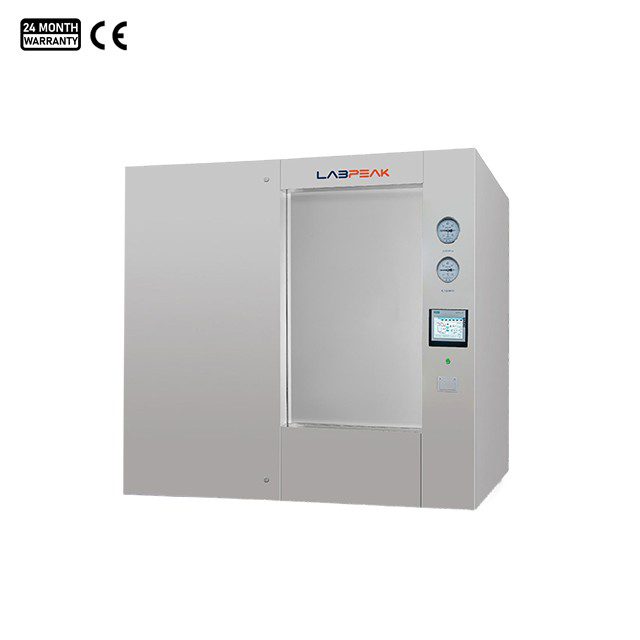

Horizontal Pulse Vacuum Autoclave Feature:

Motor-driven sliding door for automatic opening and closing, no manual operation.
Double-door design with pressure and temperature safety interlocks.
Inflatable pressure-driven silicone seal, wear-resistant with up to 1500 cycles lifespan.
Rectangular structure with circular reinforcement for strong sealing.
Flash steam vacuum drying with fabric drying rate <0.6%, instrument drying <0.1%.
Real-time process data printing, optional paperless recorders for pharmaceutical use.

Horizontal Pulse Vacuum Autoclave Specifications:

Model	LST-PBH120PV	LST-PBH150PV
Chamber Size (ØxL)mm	680×1180×1500	680×1180×1800
Volume (L)	120	150
Overall Sizes (WxDxH)(mm)	2007×2110×2113	2357×2110×2113
Weight (kg)	2300	2450
Steam Consumption (KG/C)	600	750
Water Consumption (KG)	65	80
Power	380V, 50HZ, 3.5KW(72KW)	380V, 50HZ, 4KW(90KW)
N.W.(kg)	2300	2450
Chamber Design Pressure	-0.1/0.3MPa
Jecket Design Pressure	0.3MPa
Generator Design Pressure	1.0MPa
Design Temperaure	150℃
Maximum Operating Temperature	139℃
Maximum Operating Pressure	0.25MPa
Chamber Relief Valve	0.28MPa
Jacket Relief Valve	0.28MPa
Accuracy of Temperature	0.1℃
Accuracy of Pressure	0.1KPa
Sterilization Temperature Control Accuracy	±1℃
Temperature Uniformity	±1℃
Negative Pressure Pulsating Vacuum	-80~0KPa
Across the Pressure Pulsation	-80~80KPa
Positive Pressure Pulse	0~9 times
Maximum Vacuum	-96KPa
