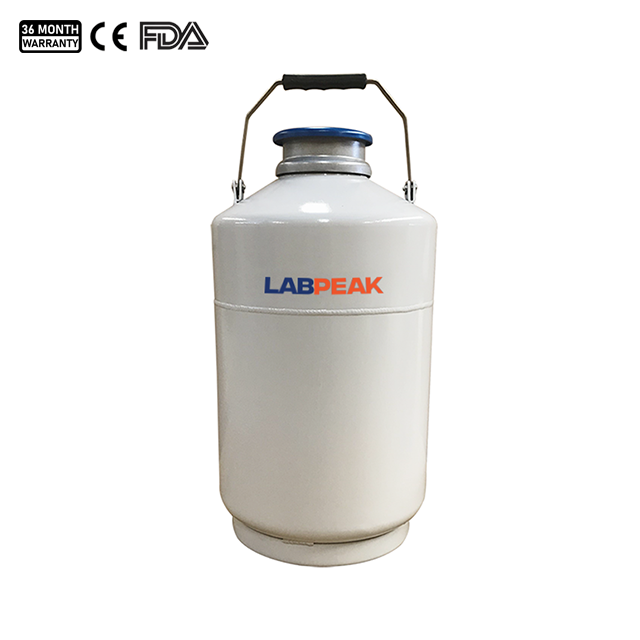

Static Storage Liquid Nitrogen Tank

Model : LLNC-P10-80S; LLNC-P10-125S; LLNC-P13-50S; LLNC-P15-50S; LLNC-P20-50S; LLNC-P25-50S; LLNC-P30-50S etc.
LN₂ Capacity (L) : 10 / 10 / 13 / 15 / 20 / 25 / 31.5 / 31.5 / 31.5 / 35.5 / 35.5 / 35.5 / 47 / 50
Neck Opening (mm) : 80 / 125 / 50 / 50 / 50 / 50 / 50 / 80 / 125 / 50 / 80 / 125 / 127 / 125
Canister Diameter (mm) : 63 / 97 / 38 / 63 / 97 / 104 / 97

Description

The static storage liquid nitrogen tank is crafted from high-strength, lightweight aluminum alloy and features a multi-layer, ultra-strong insulation. This design ensures the tank is safe, lightweight, and efficient, making it ideal for long-term static storage of biological samples.

Static Storage Liquid Nitrogen Tank Feature:

High strength, light weight and small size aluminum structure.
Equipped with belt.
Ultra low evaporation loss.
Large straw capacity.
Vials cane is optional.
Roller base is optional.

Reliability

Lockable lid is optional to prevent unauthorized open.
Level monitoring system is optional.
Liquid nitrogen pump is optional.
Five years vacuum warranty.

Static Storage Liquid Nitrogen Tank Specifications:

Model		LLNC-P10-80S	LLNC-P10-125S	LLNC-P13-50S	LLNC-P15-50S	LLNC-P20-50S	LLNC-P25-50S	LLNC-P30-50S
Performance
LN₂ Capacity (L)		10	10	13	15	20	25	31.5
Weight Empty (kg)		6.2	6.3	6.3	8.5	9.5	10.7	12.9
Neck Opening (mm)		80	125	50	50	50	50	50
Outer Diameter (mm)		300	300	310	394	394	394	462
Overall Height (mm)		557	554	623	591	672	700	705
Static Evaporation Rate (L/day)		0.21	0.43	0.12	0.11	0.12	0.14	0.12
Static Holding Time (day)		48	24	109	134	168	180	254
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	38	38	38	38
Canister Height (mm)		120	120	276	120	120/276	120/276	120/276
Numbar Of Canisters (sa)		6	1	6	6	6	6	6
Straws Capacity (120 mm canister)	0.5ml (ea)	2244	854	/	792	792	792	792
Straws Capacity (120 mm canister)	0.25ml (ea)	5022	1940	/	1788	1788	1788	1788
Straws Capacity (276 mm Canister)	0.5ml (ea)	/	/	1284	/	1284	1284	1284
Straws Capacity (276 mm Canister)	0.25ml (ea)	/	/	2832	/	2832	2832	2832
Gross Weight (kg)		8.3	7.6	9.1	11.3	12.7	14.2	15.8
Shipping Size (WxDxH) (mm)		340x340x615	340x340x615	350x350x690	425x425x655	425x425x735	425x425x765	480x480x900
Optional Accessories
Lockable Lid		Standard	Standard	Standard	Standard	Standard	Standard	Standard
PU Bag (Protective Jacket)		Standard	/	Standard	Standard	Standard	Standard	Standard
Smart Cap		Standard	Standard	Standard	Standard	Standard	Standard	Standard
Roller Base		/	/	/	/	/	/	Standard

Model		LLNC-P30-80S	LLNC-P30-125S	LLNC-P35-50S	LLNC-P35-80S	LLNC-P35-125S	LLNC-P47-127S	LLNC-P50-125S
Performance
LN₂ Capacity (L)		31.5	31.5	35.5	35.5	35.5	47	50
Weight Empty (kg)		13	13	14.2	14.5	14.6	18.2	17.3
Neck Opening (mm)		80	125	50	80	125	127	125
Outer Diameter (mm)		462	462	462	462	462	508	462
Overall Height (mm)		709	704	749	753	748	718	818
Static Evaporation Rate (L/day)		0.21	0.35	0.12	0.22	0.37	0.36	0.45
Static Holding Time (day)		147	90	286	159	97	130	110
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	63	97	104	97
Canister Height (mm)		120/276	120	120/276	120/276	120/276	276	120/276
Numbar of Canisters (sa)		6	6	6	6	6	6	6
Straws Capacity (120 mm Canister)	0.5ml (ea)	2244	5124	792	2244	5124	/	5124
Straws Capacity (120 mm Canister)	0.25ml (ea)	5022	11640	1788	5022	11640	/	11640
Straws Capacity (276 mm Canister)	0.5ml (ea)	3624	/	1284	3624	9048	10704	9048
Straws Capacity (276 mm Canister)	0.25ml (ea)	8460	/	2832	8460	20760	23604	20760
Gross Weight (kg)		16.3	17.3	18.1	18.7	19.9	26.2	23.4
Shipping Size (WxDxH)(mm)		480x480x900	480x480x900	480x480x915	480x480x915	480x480x915	540x540x890	480x480x985
Optional Accessories
Lockable Lid		Standard	Standard	Standard	Standard	Standard	Standard	Standard
PU Bag (Protective Jacket)		Standard	Standard	Standard	Standard	Standard	/	Standard
Smart Cap		Standard	Standard	Standard	Standard	Standard	Standard	Standard
Roller Base		Standard	Standard	Standard	Standard	Standard	Standard	Standard
