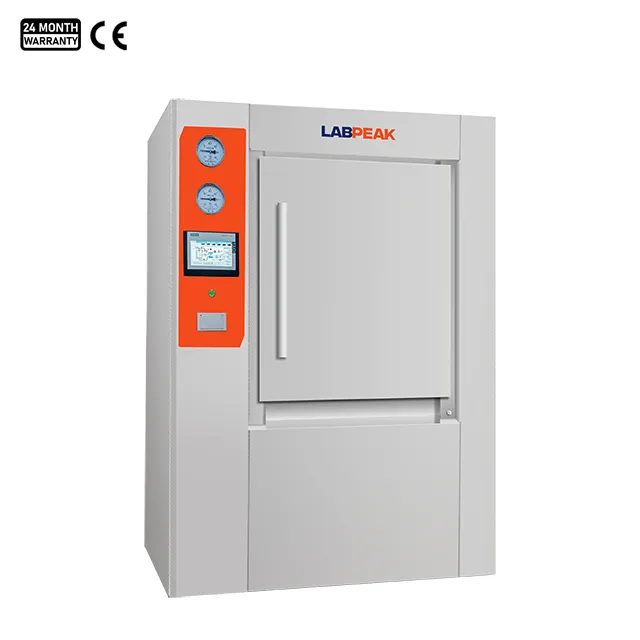

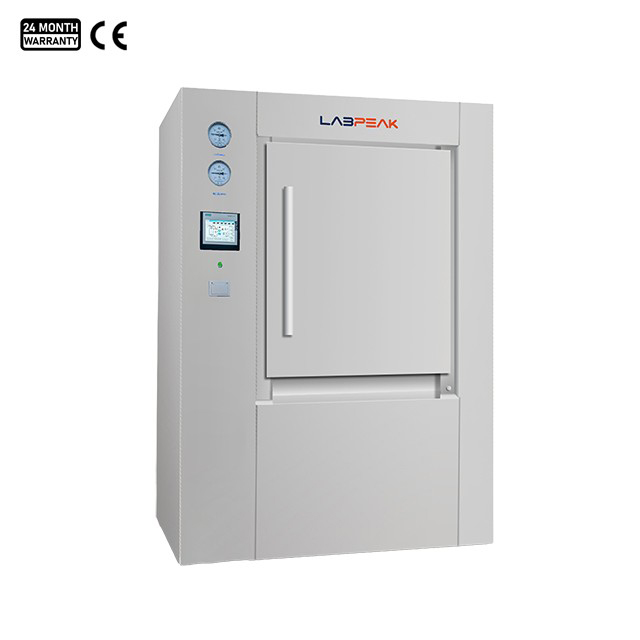

Horizontal Pulse Vacuum Autoclave Feature:

Motorized chain-driven sliding door lifts up and down.
Double door interlock, including liquid pressure temperature safety interlock.
Inflatable sealing ring, wear-resistant silicone, life 1500 times.
Rectangular main structure, no flange European style reinforcement design.
Siemens PLC control, touch screen display full automation.
IOT remote monitoring and maintenance, support real-time data, troubleshooting, remote upgrade.
Negative pressure, cross and positive pressure pulsation, air exclusion rate >99.99%.
Flash vacuum drying, fabric drying rate <0.6%, apparatus <0.1%.
Built-in printer prints data in real time, suitable for pharmaceutical customers.
Sanitary stainless steel piping, using German-made control valve and water ring vacuum pump.
Supply system detection alarm, automatically prevent program startup failure.
Automatic drainage temperature control, drainage temperature <60℃.

Horizontal Pulse Vacuum Autoclave Specifications:

Model	LST-PBA650PV	LST-PBA800PV	LST-PBA1000PV	LST-PBA1200PV	LST-PBA1500PV
Chamber Size (ØxL) (mm)	610×910×1200	610×910×1500	610×910×1800	680×1180×1500	680×1180×1850
Volume(L)	650	800	1000	1200	1500
Overall Sizes (WxDxH)(mm)	1500×1350×1900	1800×1350×1900	2100×1350×1900	1800×1420×2000	2100×1420×2000
Weight (kg)	1250	1350	1550	1650	1850
Steam Consumption (KG/C)	35	47	55	65	80
Water Consumption (KG)	320	400	500	600	750
Power	380V, 50Hz 3KW+(36KW)	380V, 50Hz 3.5KW+(48KW)	380V, 50Hz 3.5KW+(54KW)	380V, 50Hz 3.5KW+(72KW)	380V, 50Hz 4KW+(90KW)
N.W. (kg)	–	1350	1550	1650	1850
Chamber Design Pressure	0.3MPa
Generator Design Pressure	1.0MPa
Design Temperaure	150℃
Maximum Operating Temperature	139℃
Maximum Operating Pressure	0.25MPa
Chamber Relief Valve	0.28MPa
Jacket Relief Valve	0.28MPa
Accuracy of Pressure	0.1KPa
Sterilization Temperature Control Accuracy	±1℃
Temperature Uniformity	±1℃
Negative Pressure Pulsating Vacuum	-80~0KPa
Across the Pressure Pulsation	-80~80KPa
Positive Pressure Pulse	0~9 times
Maximum Vacuum	-96KPa
