- Model : LST-PBV150PV; LST-PBV180PV; LST-PBV250PV; LST-PBV300PV; LST-PBV360PV; LST-PBV450PV; LST-PBV600PV; LST-PBV800PV;
- Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
- Chamber Design Pressure : -0.1/0.3MPa
- Generator Design Pressure : 1MPa
- Design Temperaure : 150℃

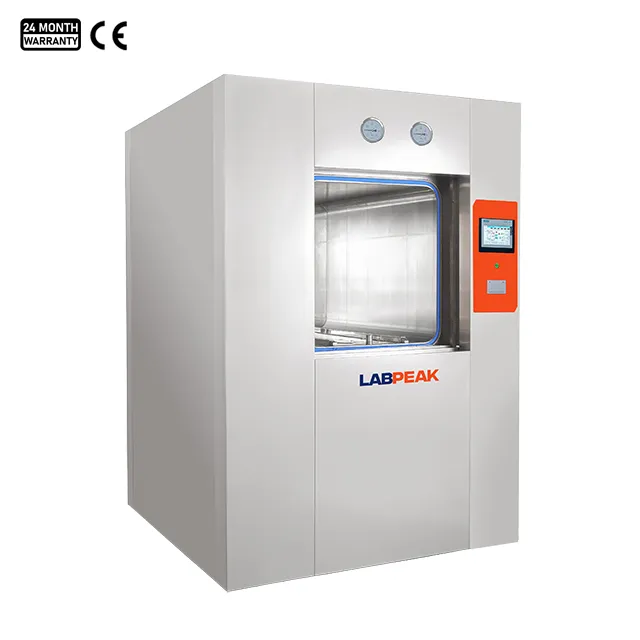

Horizontal Pulse Vacuum Autoclave with Lift Door
Description
Labpeak’s laboratory horizontal pulse vacuum sterilizers are used in a wide range of applications in research institutes, medical, pharmaceutical and other industries. The state-of-the-art laboratory sterilizers offer unmatched volume options, with chamber volumes ranging from 150 to 800 liters.
Horizontal Pulse Vacuum Autoclave Feature:
- Motor-driven chain lift door saves space.
- Double door interlock design with pressure temperature safety interlock.
- Inflatable sealing ring, wear-resistant silicone, life time 1500 times.
- Siemens PLC control, touch screen display full automatic control.
- Intelligent maintenance, remote monitoring and troubleshooting.
- A variety of sterilization procedures, suitable for different types of items.
- Multi-mode pulsation, 99.99% air exclusion rate.
- Fast drying, fabric dryness less than 0.6%.
- Built-in printer, support paperless record.
Horizontal Pulse Vacuum Autoclave Specifications:
| Model | LST-PBV150PV | LST-PBV180PV | LST-PBV250PV | LST-PBV300PV | LST-PBV360PV | LST-PBV450PV | LST-PBV600PV | LST-PBV800PV |
| Chamber Size (WxHxD)(mm) | 450×450×750 | 450×450×900 | 550×550×845 | 550×550×1000 | 610×610×1000 | 652×690×1000 | 652×690×1350 | 652×690×1800 |
| Volume（L） | 150 | 180 | 250 | 300 | 360 | 450 | 600 | 800 |
| Overall Sizes (LxWxH)(mm) | 1045×1120×1800 | 1185×1120×1800 | 1200×1290×1850 | 1350×1290×1850 | 1350×1350×1850 | 1350×1400×1950 | 1700×1400×1950 | 2150×1400×1950 |
| Steam Consumption (KG/C) | 12 | 12 | 16 | 18 | 20 | 22 | 35 | 52 |
| Water Consumption (KG) | 80 | 90 | 120 | 140 | 160 | 180 | 320 | 400 |
| Power | 380V, 50HZ, 2KW+(12KW) | 380V, 50HZ, 2KW+(15KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(20KW) | 380V, 50HZ, 2KW+(30KW) | 380V, 50HZ, 3KW+(36KW) | 380V, 50HZ, 3.5KW+(48KW) |
| Shipping Size (WxDxH)(mm) | 1210×1280×2110 1450x1210x1100(S) 1450x700x1100(D) |
1350×1270×2100 1520×1070×1150(S) |
1350×1450×2100 1420×800×1050(D) 1420×1200×1050(S) |
1500×1400×2100 1500×1150×960(S) |
1470×1500×2150 | 1500×1550×2200 | 1850×1550×2250 | 2150×1430×2250 |
| 1600×750×1100(D) | 1450×1150×1050(S) | 1900×1150×1050(S) | 2350×1350×1100(D) | |||||
| N.W./G.W. (kg) | 520/670 | 560/710 | 745/895 | 820/970 | 870/1020 | 965/1115 | 1150/1300 | 1350/1500 |
| Chamber Design Pressure | -0.1/0.3MPa | |||||||
| Jacket Design Pressure | 0.3MPa | |||||||
| Generator Design Pressure | 1MPa | |||||||
| Design Temperaure | 150℃ | |||||||
| Maximum Operating Temperature | 139℃ | |||||||
| Maximum Operating Pressure | 0.25MPa | |||||||
| Chamber Relief Valve | 0.28MPa | |||||||
| Jacket Relief Valve | 0.28MPa | |||||||
| Accuracy of Temperature | 0.1℃ | |||||||
| Accuracy of Pressure | 0.1KPa | |||||||
| Sterilization Temperature Control Accuracy | ±1℃ | |||||||
| Temperature Uniformity | ±1℃ | |||||||
| Negative Pressure Pulsating Vacuum | -80~0KPa | |||||||
| Across the Pressure Pulsation | -80~80KPa | |||||||
| Positive Pressure Pulse | 0~9 times | |||||||
| Maximum Vacuum | -96KPa | |||||||
