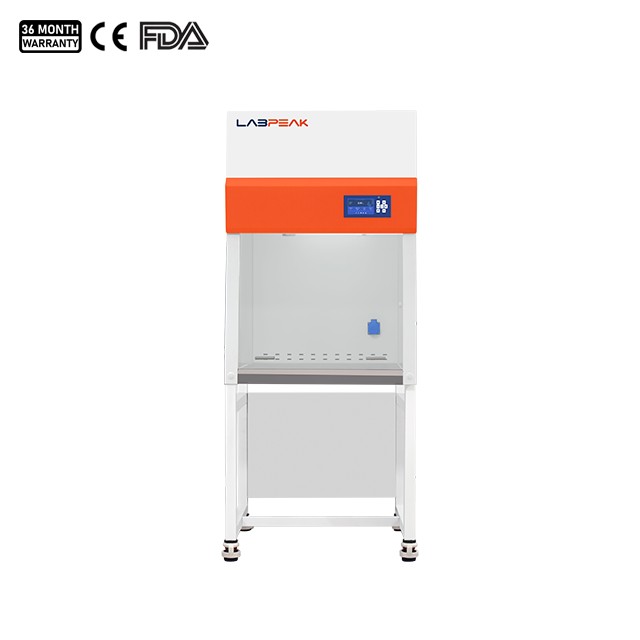

For applications that are not hazardous to operator but require clean work area, choose LCB-V-LP800 vertical laminar flow cabinet.
Laminar flow cabinets provide controlled work surfaces for applications that require a sterile work environment, ensuring that contaminants are prevented from entering through continuous filtered airflow.
Labpeak’s laminar flow cabinet is the perfect engineering and ergonomic design combination, designed to provide long-term reliability and user comfort. It is particularly suitable for non-hazardous applications such as plant tissue culture, media preparation, and other requirements for sterile environments.
| Model | LCB-V-LP800 | |
| External Size (WxDxH)(mm) | 710 x 680 x 1050 (Without Base Stand) | |
| 710 x 680 x 1680 ( With Base Stand) | ||
| Internal Size (WxDxH)(mm) | 610x590x625 | |
| Work Surface Height | 750mm | |
| Control System | Display | Microprocessor controller with LCD display, display the operating status of each function |
| Interlock | Front sliding sash interlock with fan and UV lamp | |
| Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | |
| Airflow System | Airflow Velocity | 0.2~0.5m/s, Speed adjustable |
| Air filtration System | Pre-Filter | 1pcs, Polyester fiber, washable |
| HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | |
| Cleanliness Grade | ISO Class 5 (formerly Class 100) | |
| Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
| Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating |
| Work Surface | 304 Stainless steel, an angled front, rounded work surface front edge | |
| Front Window | Manual sliding sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | |
| Side window | 5 mm UV resistant tempered glass | |
| Electrical System | UV Lamp | 8W×1 |
| With timing function from 0 to 999 minutes | ||
| Interlock with front sliding sash. | ||
| Emission of 253.7 nanometers for best sterilization effect. | ||
| LED Lamp | 8W×1 | |
| Consumption | 160W (Not include socket loading power consumption) | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Illumination | ≥500Lux | |
| Sound Emission | ≤62dB(A) | |
| Standard Accessory | 1.LED Lamp×1; 2.UV Lamp×1; 3.Waterproof Socket×1 | |
| Optional Accessory | 1.Base stand; 2.Gas Tap | |
| Net Weight | 80kg (Without base stand), 130kg (With base stand) | |
| Gross Weight | 115kg (Without base stand), 165kg (With base stand) | |
| Shipping Size (W×D×H)(mm) | 920x855x1190 | |
| Shipping Volume | 0.94m3 | |
Adopting standard international export packaging, the packaging can adapt to long-term international transportation.
We provide sea freight, air freight, land freight, express service, accept EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAF, DES, DEQ, DDU, DDP and other trade terms.

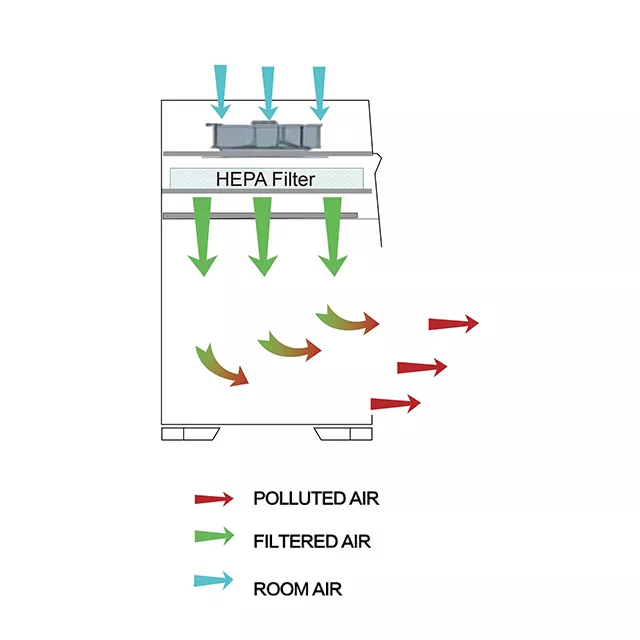

A vertical laminar flow cabinet works by drawing air through a HEPA filter, which removes contaminants, and then directing this clean air downward in a vertical laminar flow pattern onto the work surface, creating a sterile environment for tasks such as tissue culture, sample preparation, or pharmaceutical compounding.
