Description

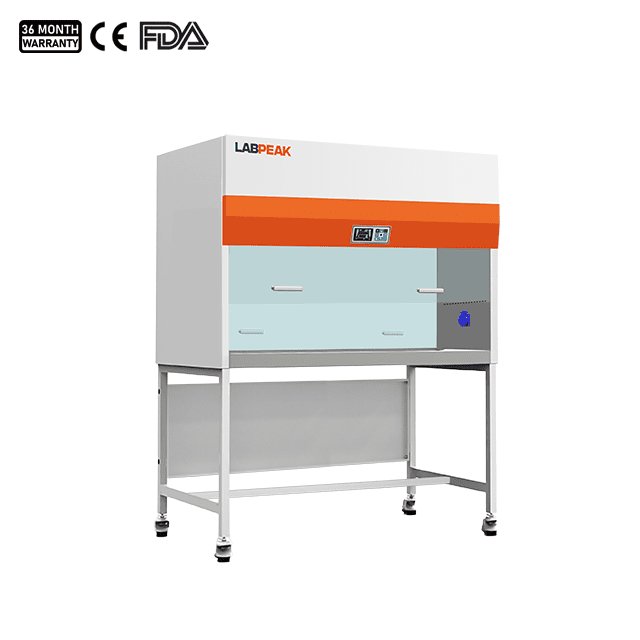

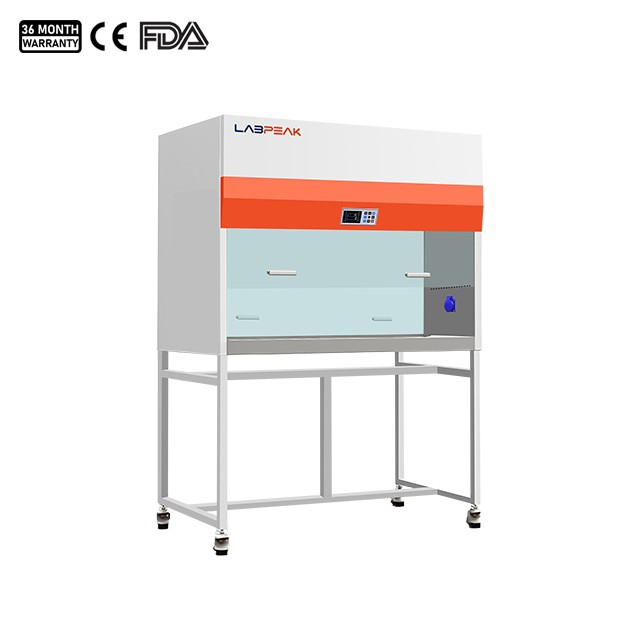

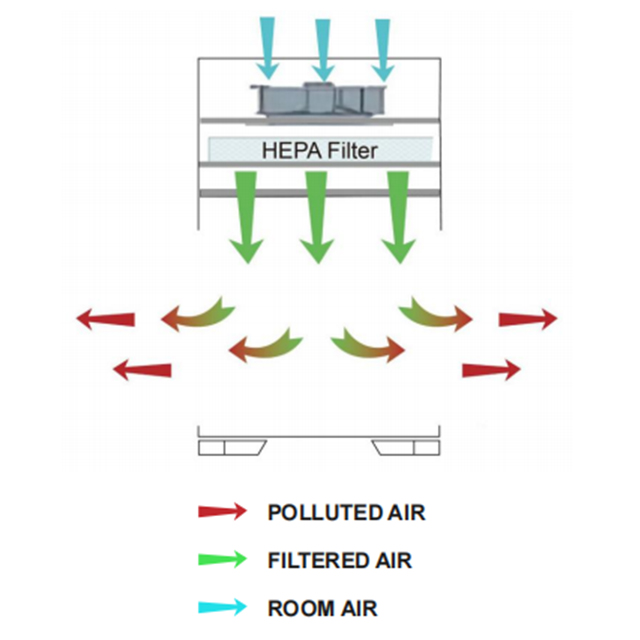

The double sided vertical laminar flow cabinet ensures sample protection by directing purified air through the working area in a vertical, unidirectional flow, exiting through the open front of the cabinet. Its double-sided design allows for more convenient operation by multiple users simultaneously.

Vertical Laminar Flow Cabinet Feature:

Stainless steel work surface is easy to clean.
Non-direct light source design effectively reduces visual fatigue for the operator.
Microprocessor controller for easy operation
With UV lamp timed sterilization function.
Main unit and sockets are equipped with separate capacitors to prevent current overload.

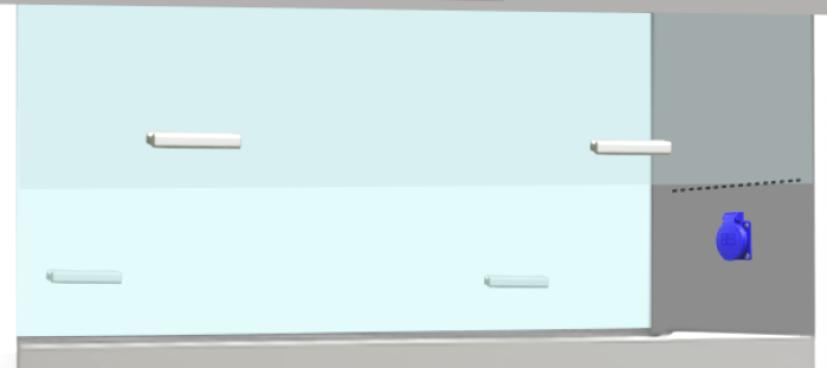

Fitted with a double-sided glass window for easy observation of experiments.
Easy-to-replace pre-filter is installed to extend the life of the HEPA filter.
Equipped with a temperature sensor to indicate the true temperature during operation.

Vertical Laminar Flow Cabinet Specification:

Model		LCB-V-LP1100D	LCB-V-LP1300D	LCB-V-LP1600D
External Size (WxDxH) (mm)		1090×755×1850	1360×755×1850	1665X755X1850
Internal Size (WxDxH) (mm)		950×650×620	1220×650×620	1525X650X620
Max.Opening		450mm (Safety height is 400mm)
Work Surface Height		750mm

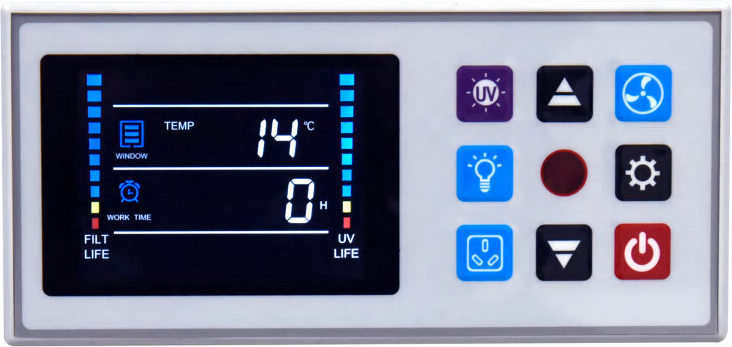

Control System		Microprocessor controller with LCD display, display the operating status of each function
Airflow System	Airflow Velocity	0.2~0.5m/s, speed adjustable
Air filtration System	Pre-Filter	1pcs, Polyester fiber, washable
	HEPA Filter	1 pcs, Efficiency: > 99.995% at particle size of 0.3μm
	Cleanliness Grade	ISO Class 5 (formerly Class 100)
Cabinet Construction	Main Body	Electro-galvanized steel with antimicrobial Powder Coating
	Work Surface	304 Stainless steel
	Front Window	Manual Sliding Sash: 5 mm UV Resistant Tempered Glass with counter-balance system and ergonomic handle
Electrical System	UV Lamp	20W×1	30W×1	30W×1
		With timing function, Interlock with front sliding sash.
		Emission of 253.7 nanometers for best sterilization effect.
	LED Lamp Consumption	6.5W×1	9.6W×1	9.6W×1
		155W	285W	285W
		Not include socket loading power consumption
	Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Illumination		≥900Lux
Sound Emission		≤65dB(A)
Standard Accessory		1.Base Stand; 2.LED Lamp×1; 3.UV Lamp×1; 4.Waterproof Socket×2; 5.Footmaster Caster
Optional Accessory		Air velocity sensor
Net Weight (kg)		180	220	260
Gross Weight (kg)		230	275	320
Shipping Size (W×D×H) (mm)		1220×880×1395	1490×880×1395	1795X880X1395
Shipping Volume (m³)		1.5	1.8	2.2
