- Model : LST-PVL65; LST-PVL80; LST-PVL90; LST-PVL110;
- Capacity : 62L; 80L; 88L; 110L
- External Size(WxLxH)(mm) : 550×640×900 550×640×1150
- Chamber Material : SUS304 Stainless steel
- Standard Accessory : Mesh basket or tote bag, gloves, and drain hose.

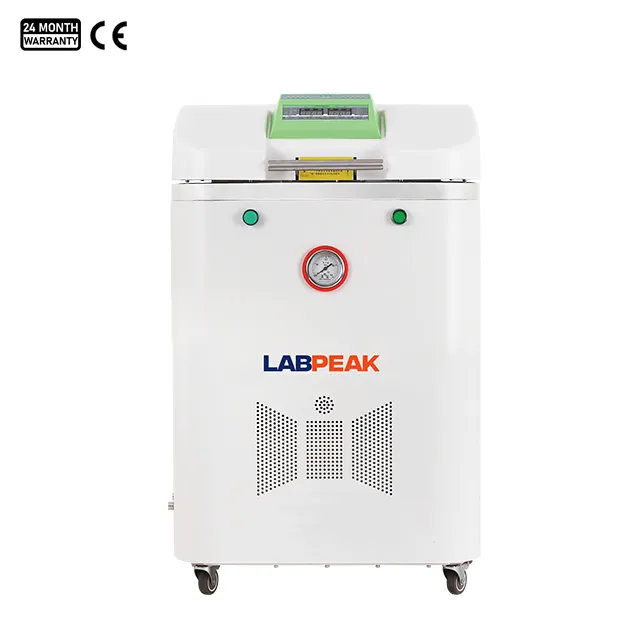

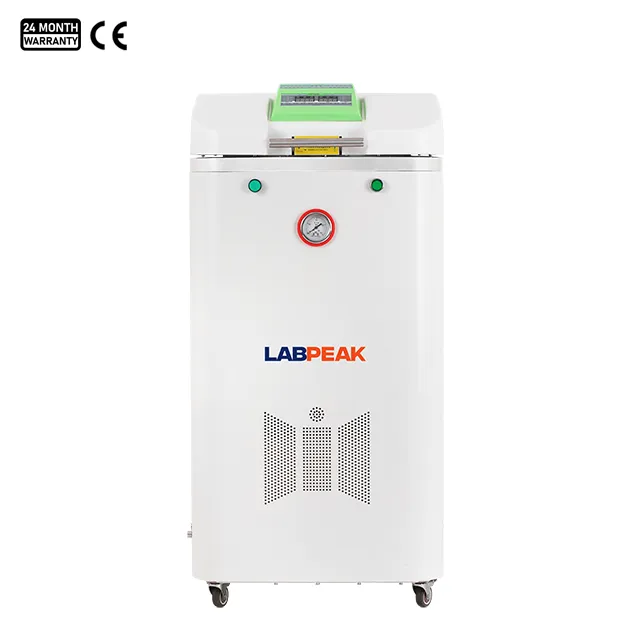

Vertical Pressure Steam Sterilizer
Description
The vertical pressure steam sterilizer is a dependable and secure sterilization device with automatic controls. It includes a heating system, a microcomputer control system, and automatic protection against overheating and overpressure. This autoclave ensures reliable sterilization and is designed for ease of use, safety, energy efficiency, durability, and cost-effectiveness.
Vertical Pressure Steam Sterilizer Feature:
Control function:
- Microcomputer fully automatic control of the sterilisation process, no need for real-time personnel guarding
- The sterilisation process can be viewed at any time, running steps
- Multiple sterilisation modes
- More than five sterilisation modes: agar, solid, liquid, instrument, etc.
- Expandable memory to store 80 sterilisation procedures
Mechanical Features
- Vertical flip lid structure
- Easy to open, automatic locking after pressing down, according to the indicator to determine the locking status.
- Electromagnetic suction type 6/8 jaws mechanical interlock.
- The rubber sealing strip is uniformly loaded to ensure safe and reliable sealing.
- Clean and tidy operating surface, providing a smooth and trouble-free loading and unloading experience.
- Dovetail sealing groove prevents accidents caused by high-temperature opening operations.
- Dual air convection fast cooling fans with adjustable cooling opening temperature can not open the lid before reaching the temperature.
- Built-in vapour collection tank with multi-stage exhaust
Safety function:
- Safety interlock device
- Anti-dry burn alarm
- Over-temperature protection, over-voltage protection
- Electrical safety protection: leakage, over-current and short-circuit protection function
Vertical Pressure Steam Sterilizer Specification:
| Model | LST-PVL65 | LST-PVL80 | LST-PVL90 | LST-PVL110 |
| Capacity | 62L | 80L | 88L | 110L |
| External Size(WxLxH)(mm) | 550×640×900 | 550×640×1150 | ||
| Internal Size | φ365×484H | φ414×484H | φ365×734H | φ414×734H |
| Chamber Material | SUS304 Stainless steel | |||
| Power Supply | AC 220V 50Hz 16A | |||
| Consumption | 4000W | |||
| Sterilization Temperature /Time | 115-138°C Continuously adjustable, 0-9999 minute countdown display | |||
| Dissolution Temperature /Time | 60-100°C continuously adjustable/0-9999 minutes countdown display | |||
| Holding Temperature/Time Preset Range | 45-80°C adjustable/300 minutes | |||
| Unlock Temperature | 60-95°C can be set (default 80°C) | |||
| Verification Interface | Reserved pressure and temperature pipe thread verification interface | |||
| Temp. Controller | Using PT100AA^ temperature sensor, with a resolution of 0.1 | |||
| Appointment Feature | Advanced booking for any time within the next year | |||
| Pressure | 0.26Mpa | |||
| Standard Accessory | Mesh basket or tote bag, gloves, and drain hose. | |||
| N.W./G.W. (kg) | 72/102 | 82/112 | 85/115 | 95/125 |
| Package Size(WxLxH)(mm) | 650×740×1050 | 650×740×1250 | ||
