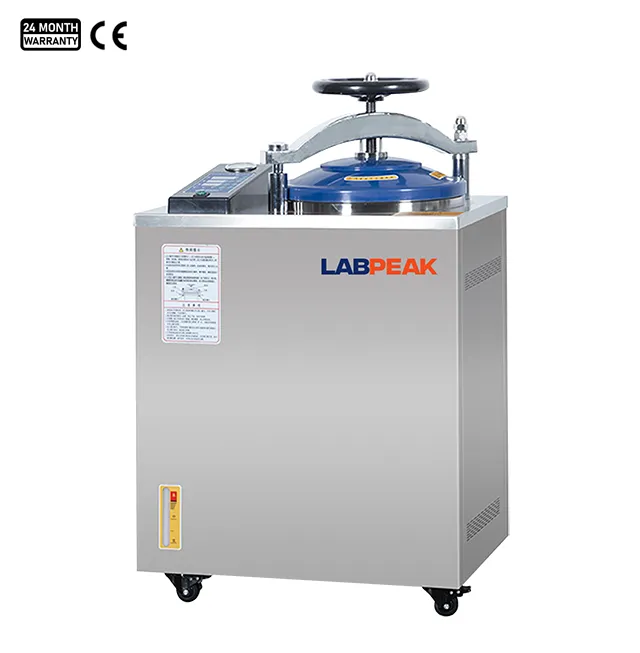

Vertical Pressure Steam Sterilizer Feature:

Hand wheel quick-opening structure with multifunctional internal cycle and drying.
High-quality stainless steel construction with internal steam cycle.
Microcomputer control for customizable sterilization parameters.
Safety interlock with digital display and touch buttons.
Automatic protection: over-temperature, over-pressure, low water level, and anti-dry burning.
Stainless steel basket with unique three-phase temperature control for better steam saturation.
Buzzer alert and automatic stop after sterilization.
Automatic cold air and steam exhaust, optional external printer and automatic water inlet function.

Vertical Pressure Steam Sterilizer Specifications:

Model	LST-PVX35	LST-PVX50	LST-PVX75	LST-PVX100
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V, 50Hz
Design Pressure	0.25MPa
Design Temperature	139℃
Rated Working Pressure	0.22MPa
Rated Working Temperature	134℃
Sterilization Temperature Setting Range	116℃~134℃
Sterilization Time Setting Range	4~120min
Drying Time Setting Range	0~240min
Chamber Volume	Ø350×400	Ø350×525	Ø400×625	Ø450×650
Bucket Size	Ø330×320	Ø330×460	Ø380×560	Ø420×540
Basket Size	Ø350×400	Ø350×525	Ø400×625	Ø450×650
Outer Size	698x498x940	630x500x1180	725x525x1170	788x588x1255
Packing Size (LxWxH)(mm)	790x610x1130	800x600x1230	840x610x1310	870x650x1380
Gross Weight	125kg	130kg	145kg	156kg
Net Weight	110kg	112kg	114kg	129kg
